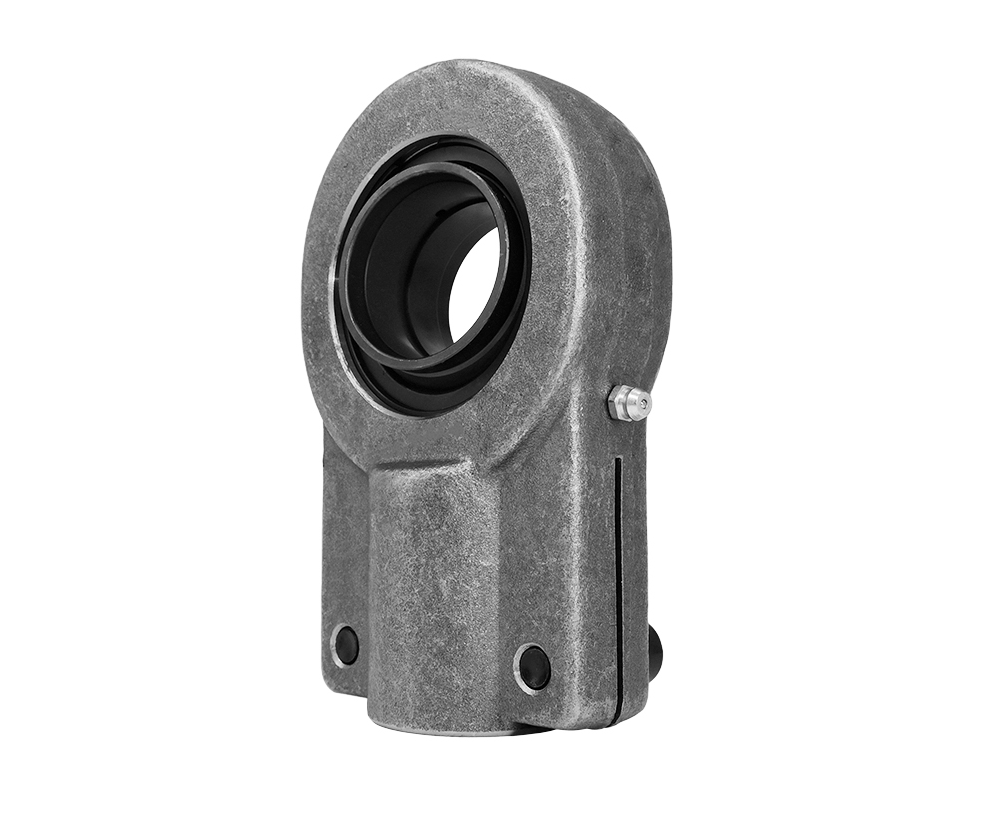

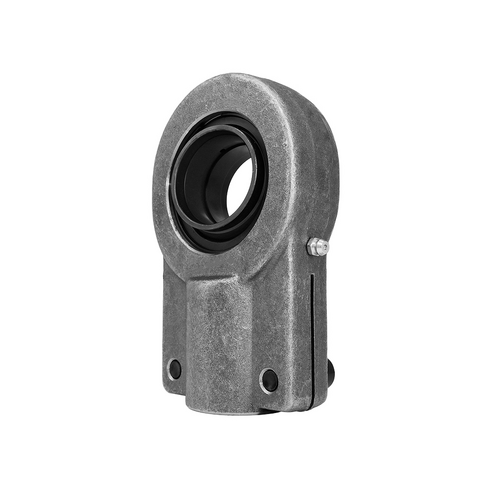

SIGEW70ES Economy Hydraulic Rod End RH Lubricated Clamped (70mm)

$551.47



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SIGEW70ES-SDTZ
Brand SDTZ
Shipping Weight 11.1000kg
(c¹) Width (mm) 57
(l) Length (mm) 245
Min. Operating Temperature (deg. C) -60°C
Ring Material Rolling Bearing Steel
Grade Economy
(d²) Outside Ø (mm) 155
Contact Surface Steel/Steel
Max. Operating Temperature (deg. C) +200°C
Seal Open
Mounting Female Clamped
(s) Thread M56X2.00
(B) Width Of Inner Ring (mm) 70
Type Of Lubrication Oiled
(d) Inside Ø (mm) 70
