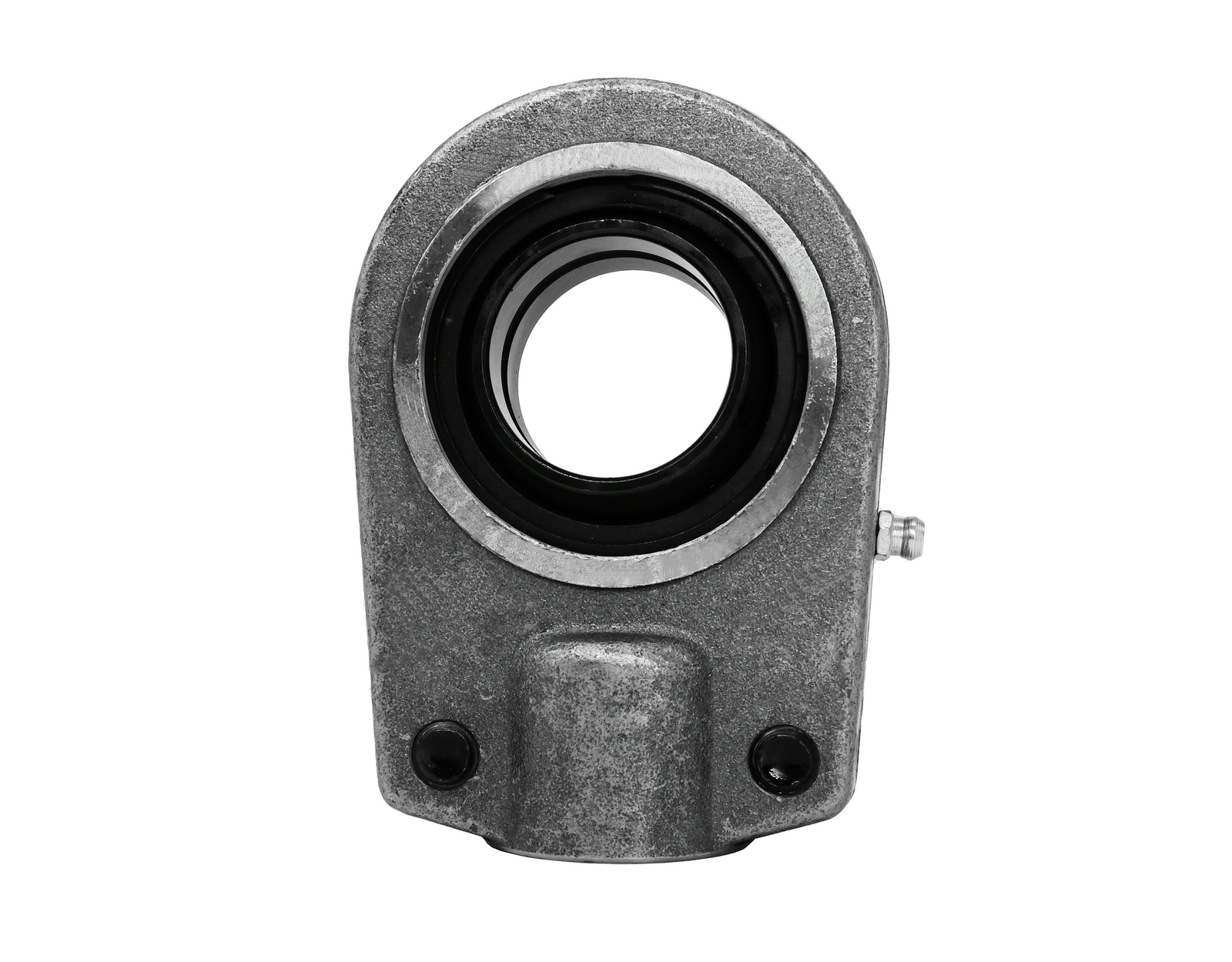

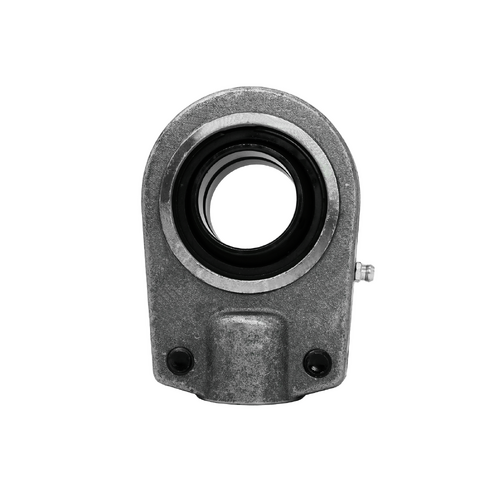

SIR30ES Economy Hydraulic Rod End Female RH Clamped (30mm)

$173.97



SKU SIR30ES-SDTZ
Shipping Weight 0.7400kg
Grade Economy
(d) Inside Ø (mm) 30
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 22
Contact Surface Steel/Steel
(l) Length (mm) 94
(s) Thread M22X1.50
(d²) Outside Ø (mm) 64
(c¹) Width (mm) 28
Mounting Female Clamped
