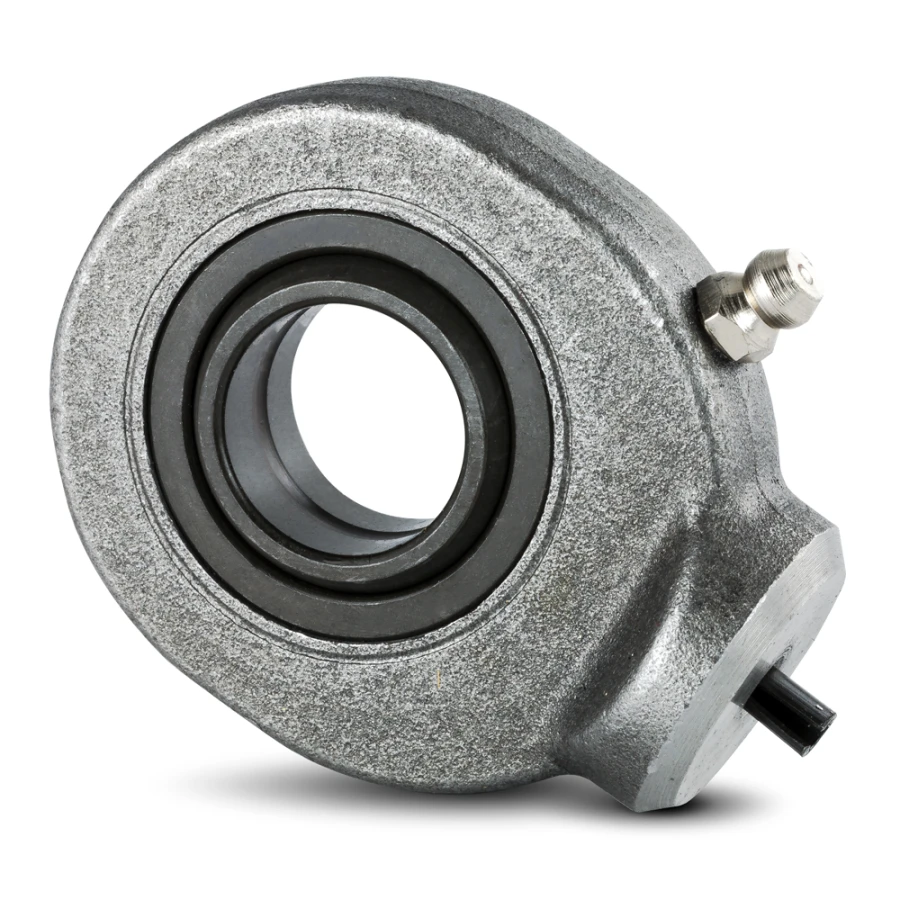

SK50ES Economy Hydraulic Weld-on Rod End w/ Dowel Pin (50mm)

$185.46



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SK50ES-SDTZ
Brand SDTZ
Shipping Weight 2.5000kg
Mounting Welded - Circular
(l) Length (mm) 144
Min. Operating Temperature (deg. C) -60°C
Ring Material Rolling Bearing Steel
Grade Economy
(c¹) Width (mm) 30
Contact Surface Steel/Steel
Max. Operating Temperature (deg. C) +200°C
Seal Open
Norm DIN ISO 12240-4
(d²) Outside Ø (mm) 115
(B) Width Of Inner Ring (mm) 35
Type Of Lubrication Oiled
(d) Inside Ø (mm) 50
