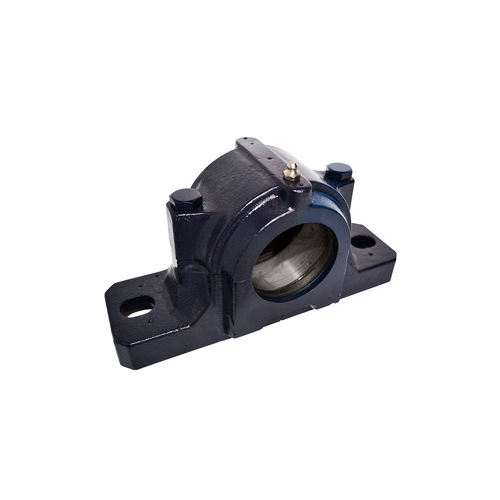

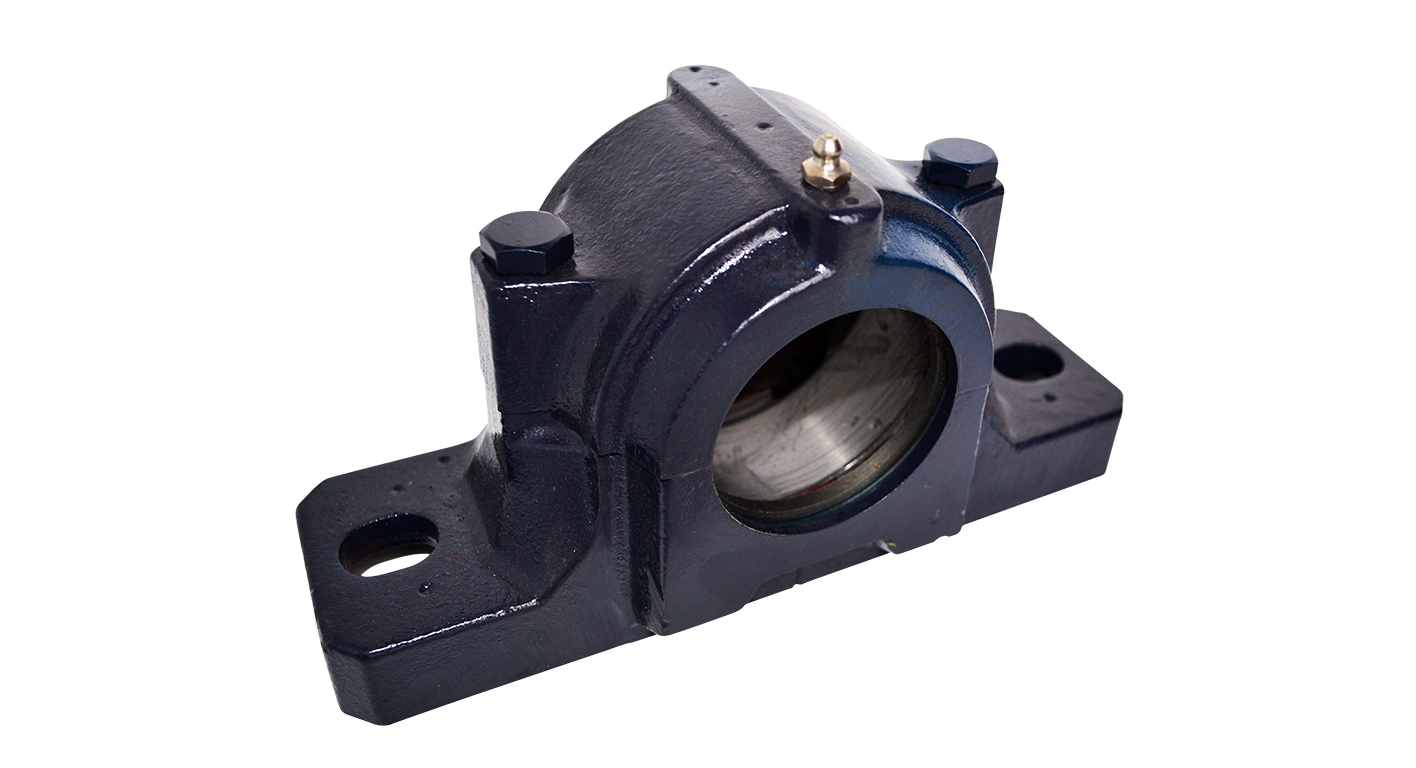

SNG516-613 Plummer Block Bearing Housing incl. Seals & Spacer Rings

$218.94



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU SNG516-613-ECO
Brand NBR
(w) Overall Height (mm) 174
(e) Hole Centres (mm) 260
Number Of Mounting Holes 2
Min. Operating Temperature (deg. C) ­20°C
(B) Width (mm) 90
(G) Height Of Foot (mm) 32
(a) Length (mm) 315
Housing Material Cast iron
Max. Operating Temperature (deg. C) +120°C
(h) Height To Centre Of Shaft (mm) 95
Bolt Size M20
Housing Type Plummer Block Housing - Medium Duty
Seal TSNG Seals
