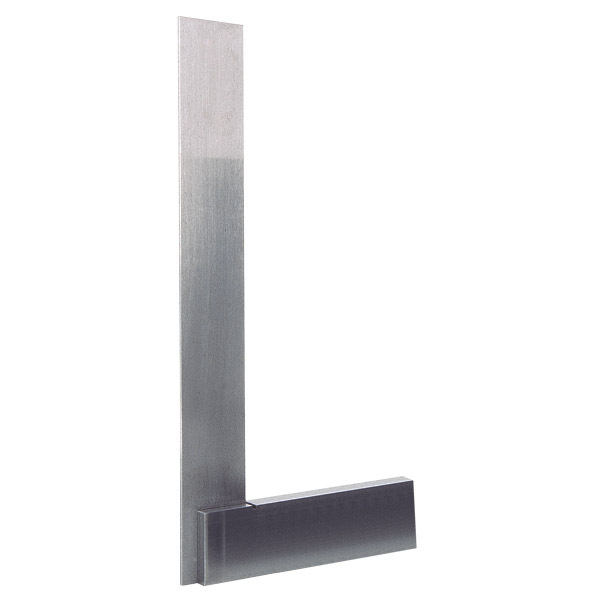

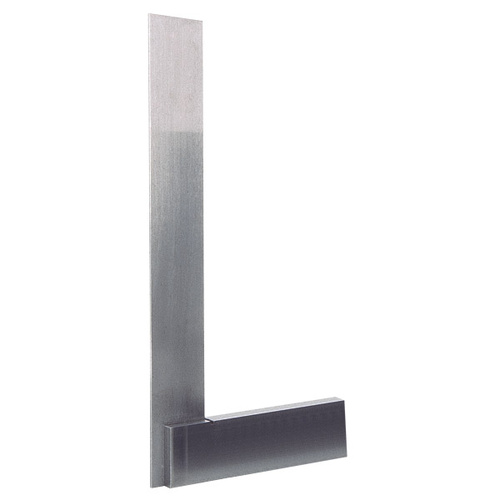

SS/A/4 Groz Precision Engineers Square, 100mm

$54.00Per: EACH



For setting up & checking jobs where extreme accuracy is required. Both the blade and stock are precisely ground to ensure straightness and parallelism. Working edges of the blades are lapped which further enhances accuracy. A groove on the inner corner of the stock aids in the clearance of burrs and dirt.
Blade Length: 100mm
Stock Length: 75mm
Code: SS/A/4
Straightness of blade edges: 0.00031 inch / 8 microns
Flatness of working faces of stock: 0.00023 inch / 6 microns
Parallelism of working faces of stock: 0.0002 inch / 5 microns
Paralle
SKU GZ-01002
Barcode # 8901486010021
Brand Groz
Shipping Weight 0.1380kg
Type ENGINEERS SQUARE
