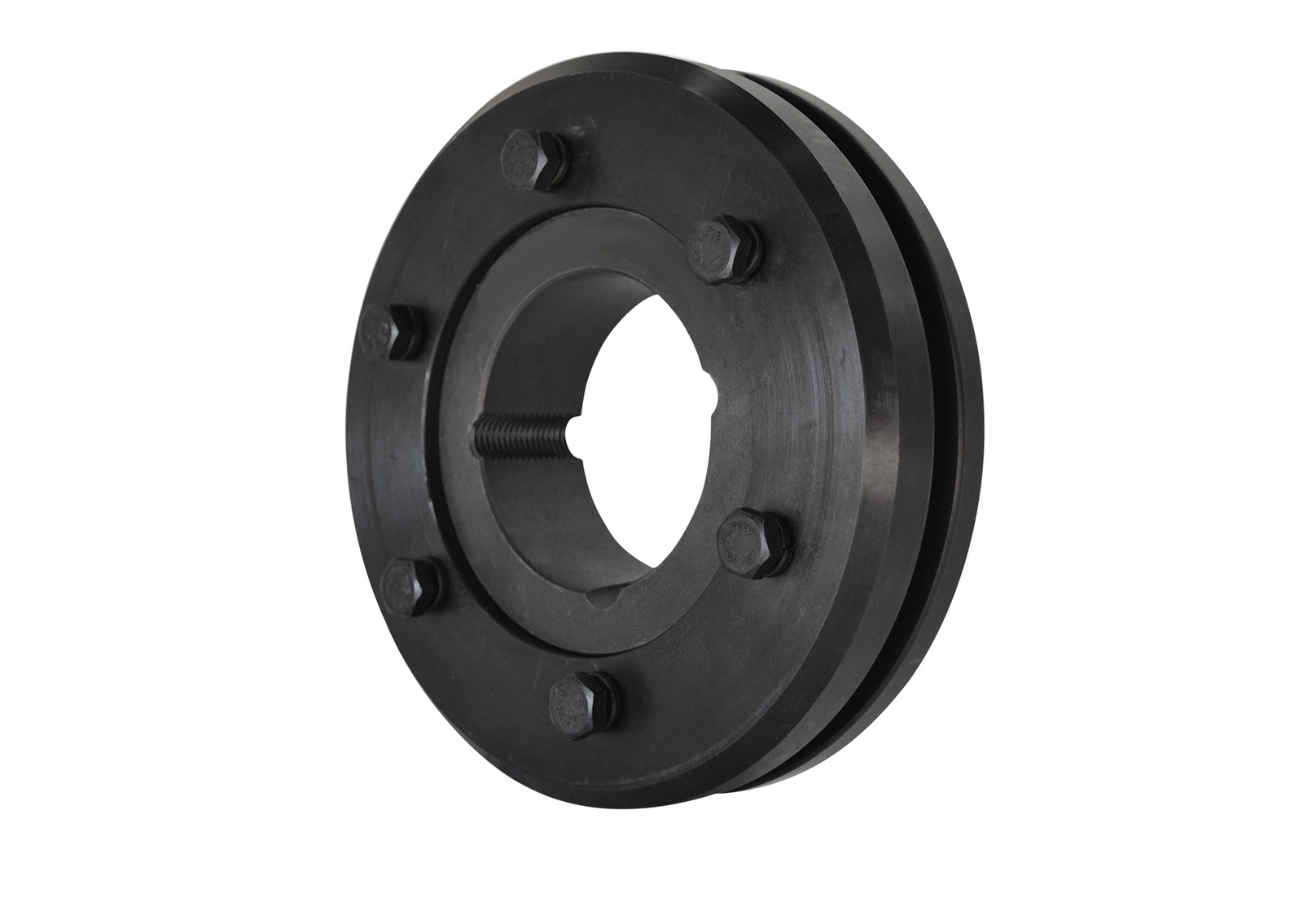

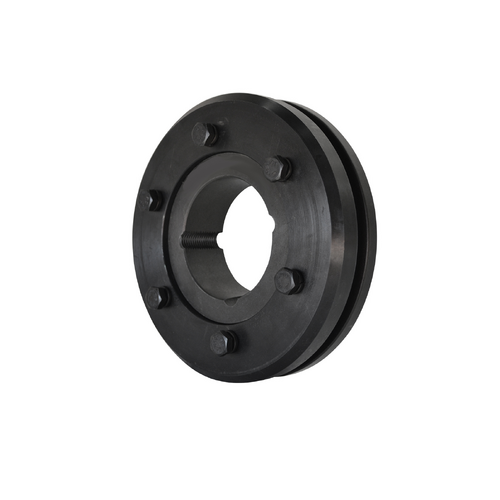

Flexible Tyre Coupling Half F140 Hub Side Taper Lock Centre

$778.01



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*

Tyre Couplings are highly elastic, lubrication free couplings that tolerate large amounts of misalignment in all planes as well as offering simple installation and inspection without disrupting the drive. The coupling also has excellent shock absorbing properties while reducing vibration and torsional oscillations. Large misalignment capability, 4° angular, up to 6mm parallel and 8mm axial

SKU F140H
Shipping Weight 22.3000kg
Dimension F (mm) 73
Hub Type H - Bush Installed on Hub Side
Dimension E (mm) 65
Bore Taper Lock
(C) Outside Ø Hub (mm) 311
Nominal Torque (Nm) 2320
Dimension M (mm) 16
Dimension D (mm) 178
(A) Outside Ø Tyre (mm) 359
Max. RPM 1800
Dimension L (mm) 81
Compatible Bush 3525
