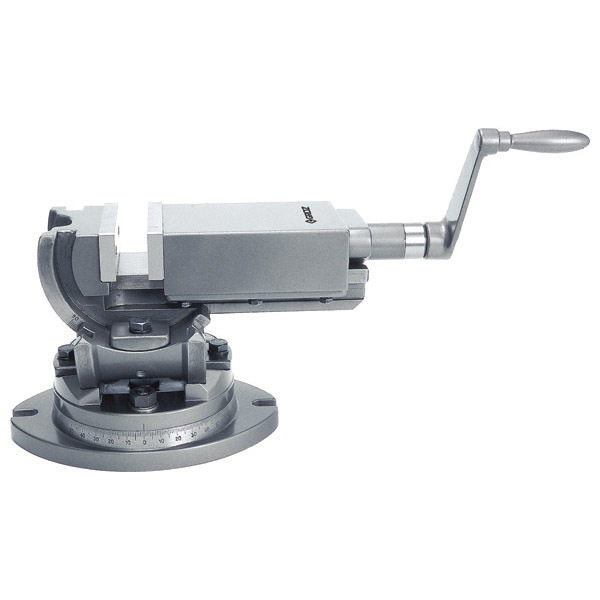

TLT/SP/100 Groz 100mm Super Precision Swivel Tilting Machine Vice

$1,224.30Per: EACH



Large and/or Heavy Item

Tilting vices providing 3 axis settings of the workpiece in special milling, drilling, grinding, shaping and jig boring applications.Vices have 2 angular slides which allow the work piece to be set at any desired angle - 45° tilting range on either side and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis.
Manufactured from close grained hi-tensile cast iron with fully hardened and ground tool steel jaws. The vices have a premium polychrommatic finish.
Ergonomically designed all steel handle allows for stress free operation. Assembled on the spindle crank with a spring loaded mechanism providing positive grip.
Use of hi-tensile grade 10.8 fasteners provides strength and rigidity to these vices.
Relief in clamp seat ensures complete surface contact as against a line contact between the “Hold Down” clamp and movable slide, thereby providing firm locking at any desired angle.
A milled slot in the vice base allows for accurate location of the vice on the machine table using rectangular locating nuts.
''Hold Down'' slots provide secure clamping of the vice on the work table.
Code: TLT/SP/100
Jaw Width: 100mm
Jaw Opening: 100mm
Jaw Depth: 38mm
Net Weight: 20.5kg
SKU GZ-35022
Barcode # 8901486350226
Brand Groz
Shipping Weight 23.0000kg
Shipping Width 0.220m
Shipping Height 0.280m
Shipping Length 0.420m
