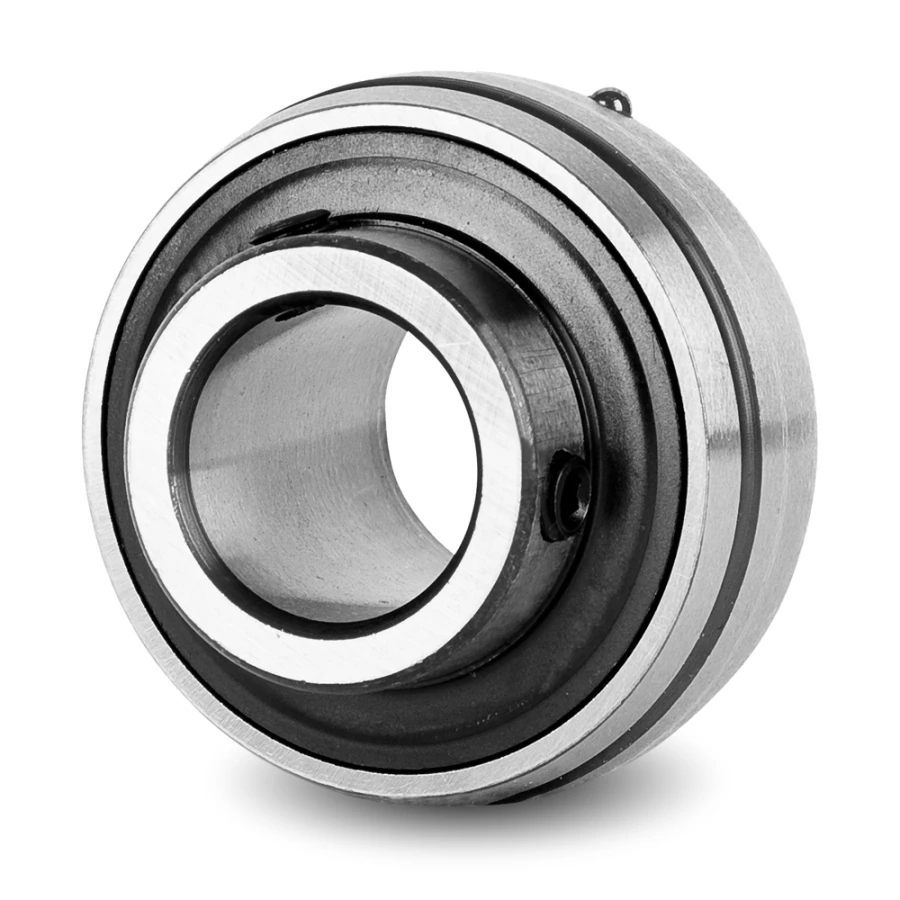

UC204TRL Economy Radial Insert Ball Bearing (20mm shaft)

$26.14



UC-Series Ball Bearings feature wide inner ring ball bearings, set screw locking design, bonded seals with a steel flinger which are matched to precision-machined cast-iron housings. Bearings withstand static misalignment of the shaft of +/- 3 degrees and are designed for normal operation between -20° C and 100° C. Wide inner ring ball bearings deliver greater shaft support and bearings are pre-lubricated and ready for immediate installation.
SKU UC204TRL-ECO
Brand NBR
Shipping Weight 0.1600kg
Lifetime Lubricated Yes
Shaft Fastening Grub Screws
Outer Race Spherical
Extended Inner Ring Both Sides
(B) Width Of Inner Ring (mm) 31
(C) Width Of Outer Ring (mm) 17
Norm. DIN 626-1
Min. Operating Temperature (deg. C) ­20°C
Max. Operating Temperature (deg. C) +120°C
Grade Economy
Type Of Lubrication Grease
Cage Material Sheet Steel
Rolling Element Material Rolling Bearing Steel
Ring Material Rolling Bearing Steel
Seal Triple lip seal
(D) Outside Ø (mm) 47
(d) Inside Ø (mm) 20
Bore Cylindrical
