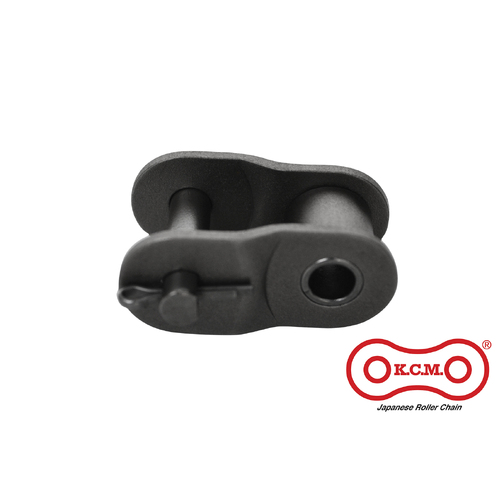

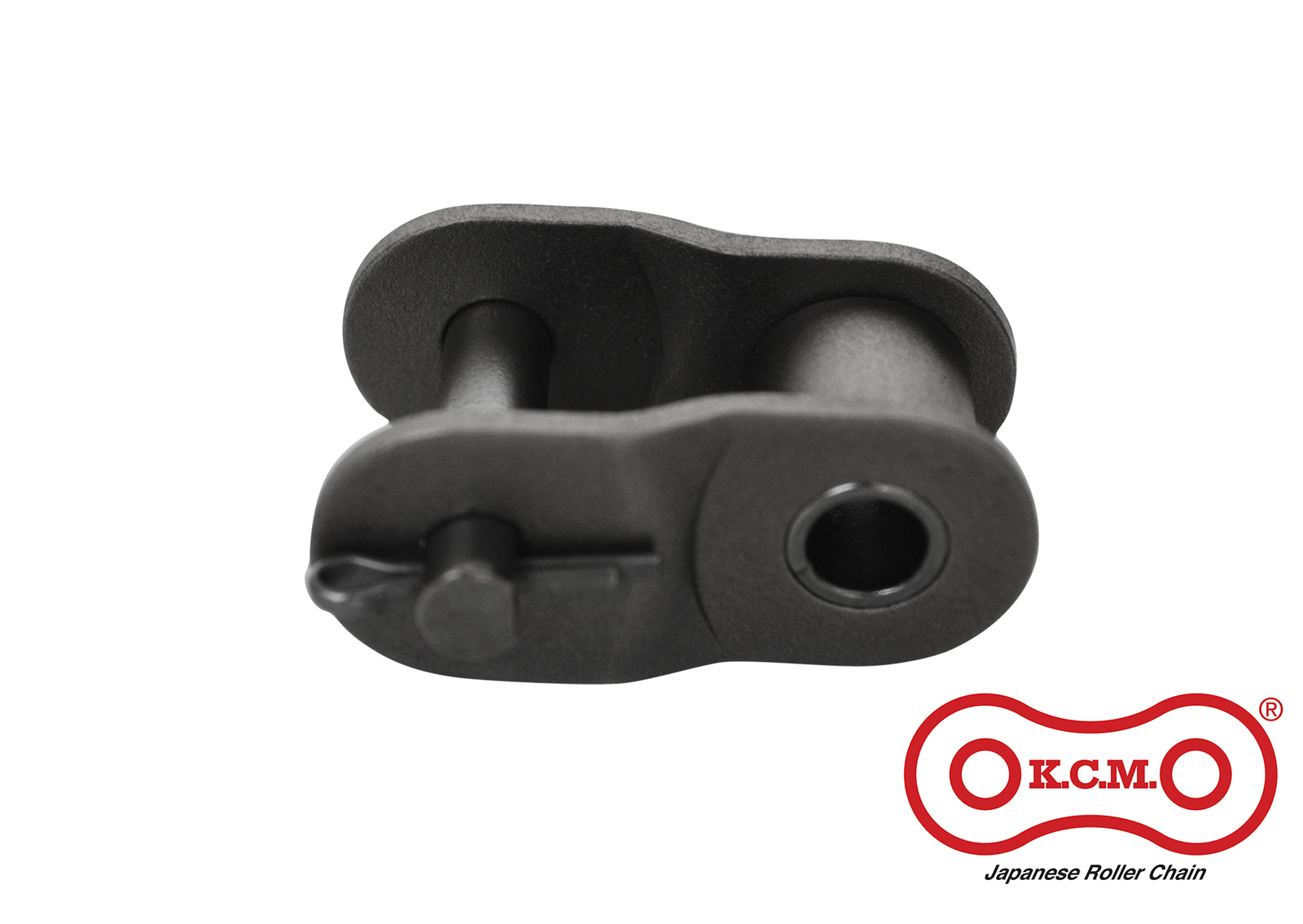

100-1OL KCM Premium Offset / Half Link 1-1/4 Inch Pitch ASA Simplex

$21.36Per: EACH
(Full Pack Contains: 1)



SKU 100-1OL-KCM
Brand KCM
Grade Premium
Norm. ANSI, JIS
(P) Pitch (mm) 31.75 (1-1/4")
(W) Width Between Inner Pitch (mm) 19.05
(D) Roller Diameter (mm) 19.05
(d) Pin Diameter (mm) 9.54
(A) Pin (mm) 20.1
(B) Pin (mm) 23.05
(A+A) L¹ (mm) 40.2
(A+B) L¹ (mm) 43.15
(L) Offset (mm) 45.05
(T) Link Plate Thickness (mm) 4
(H) Link Plate Height (mm) 28.9
