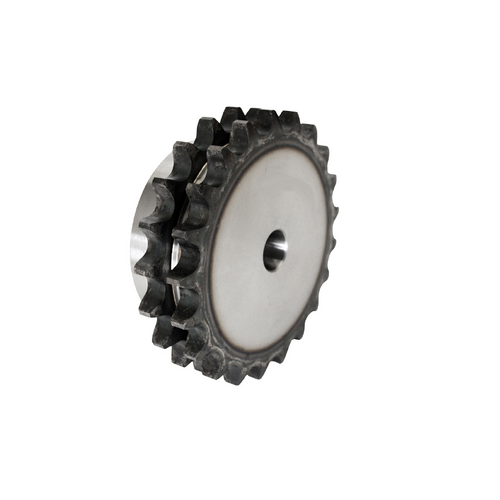

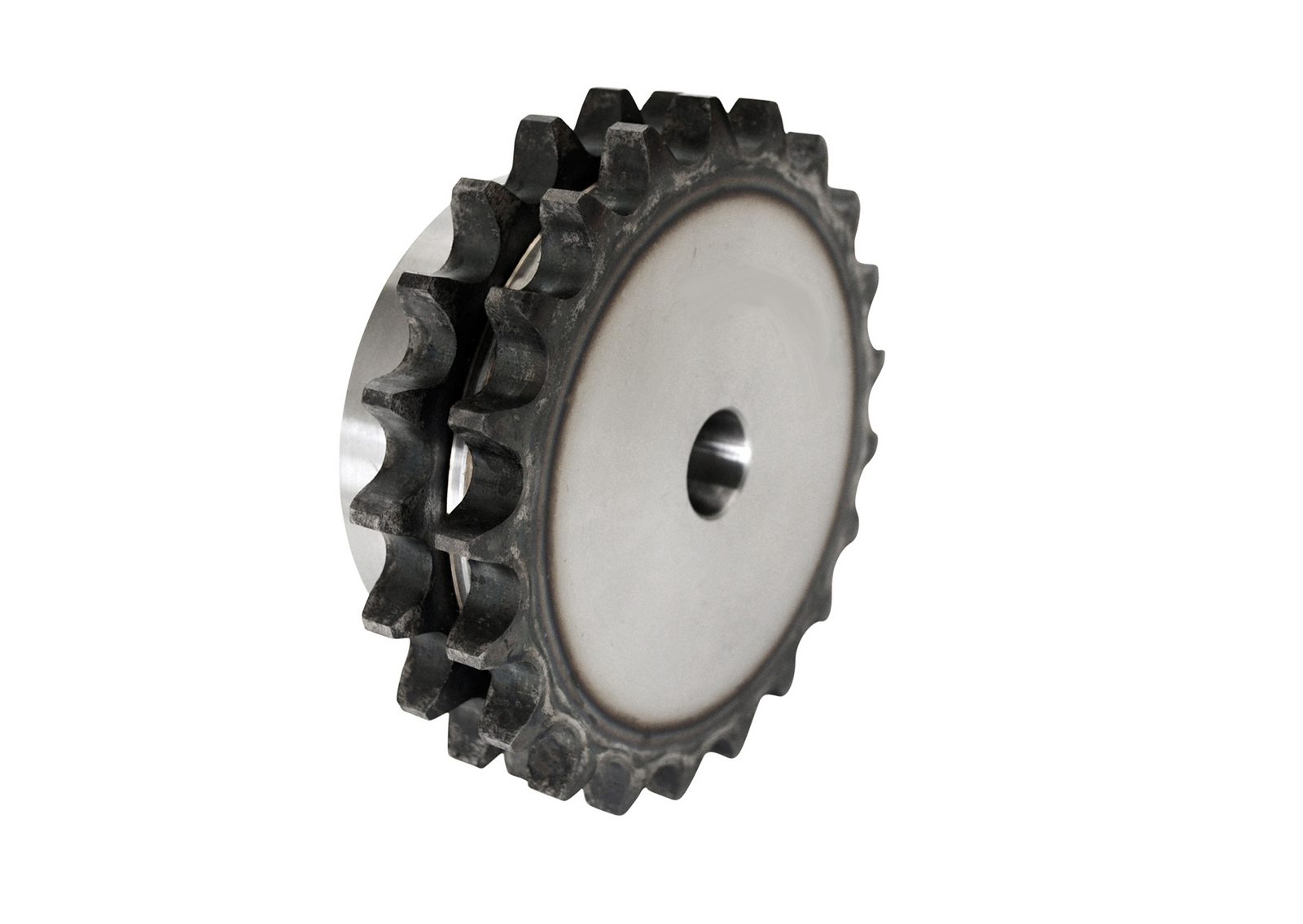

18 Tooth BS Sprocket 06B 3/8 Inch Pitch Duplex Pilot Bore Centre

$14.30



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Courier Service – Courier Service for greater traceability and faster delivery

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU 06B-2-18PB
Shipping Weight 0.4500kg
Bore PILOT BORE
(P) Pitch (mm) 9.53 (3/8")
Sprocket Material Steel
No. Of Teeth 18
No. Of Rows 2
(B¹) Tooth Width (mm) 5.3
(de) Outside Ø (mm) 58.6
(dp) Pitch Ø (mm) 54.85
(dm) Hub Ø (mm) 43
(A) Sprocket Width (mm) 30
(D¹) Bore Size (mm) 12
(B²) Tooth Width (mm) 15.4
