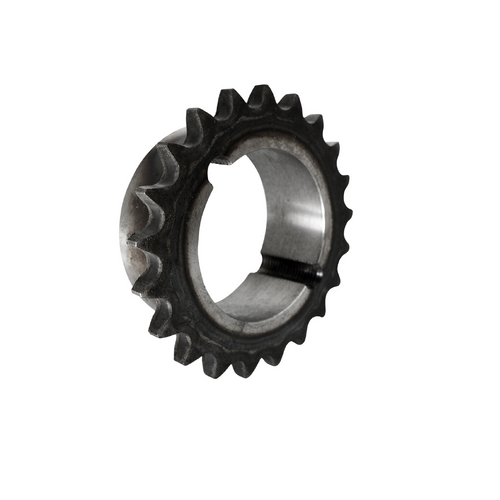

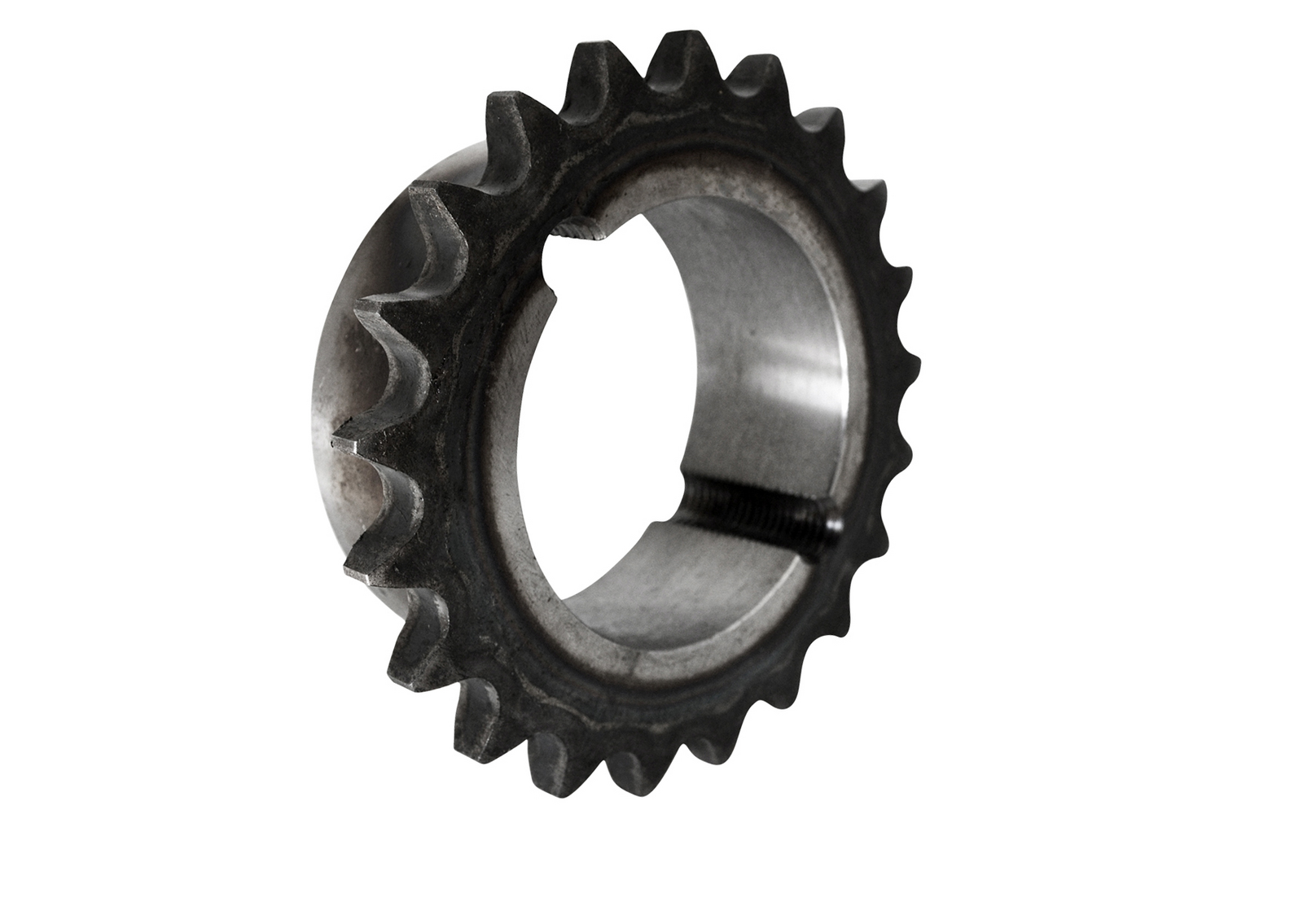

23 Tooth BS Sprocket 12B 3/4 Inch Pitch Simplex Taper Lock Centre

$83.27



SKU 12B-1-23TL
Shipping Weight 1.3700kg
Bore Taper Lock
Compatible Bush 2517
(P) Pitch (mm) 19.05 (3/4")
Sprocket Material Steel
No. Of Teeth 23
No. Of Rows 1
(B¹) Tooth Width (mm) 11.1
(de) Outside Ø (mm) 148.1
(dp) Pitch Ø (mm) 139.9
(dm) Hub Ø (mm) 108
(A) Sprocket Width (mm) 44.45
Sprocket Type Type 1
