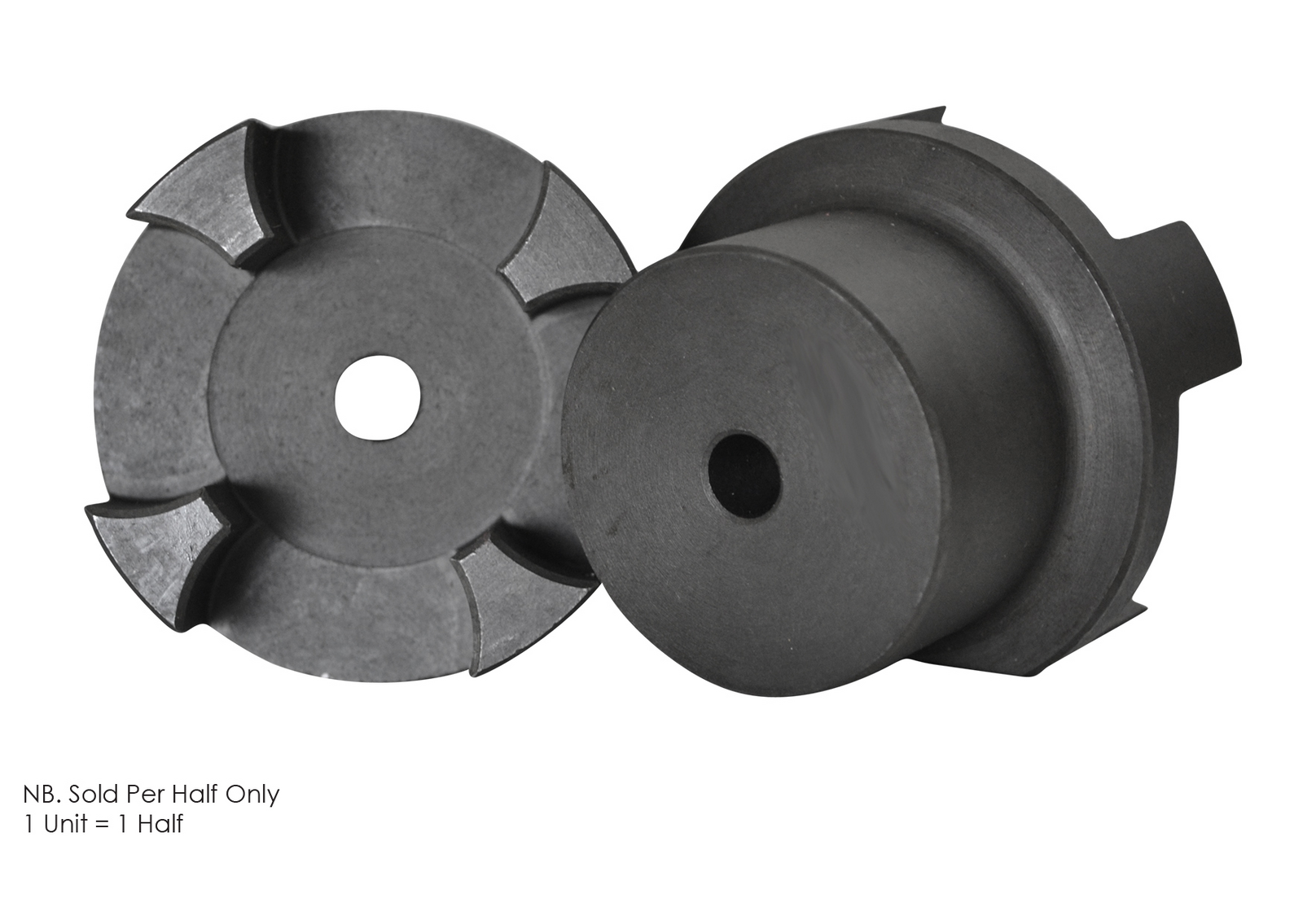

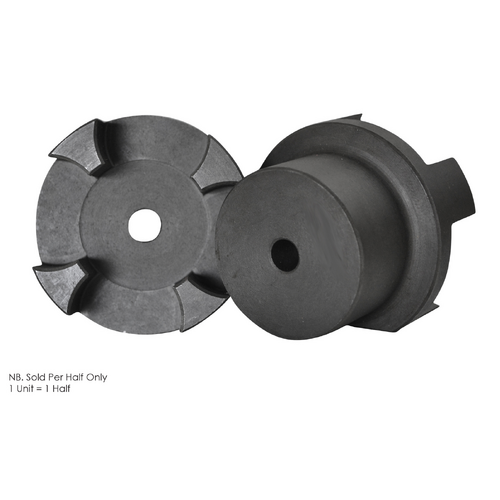

Curved Jaw Coupling Half GE38-1 Stepped Hub Pilot Bore Centre

$83.47



SKU GE38-1
Shipping Weight 1.3600kg
Bore PILOT BORE
(D) Outside Ø (mm) 80
Min. Bore (mm) 12
Max. Bore (mm) 38
Dimension L (mm) 112
Hub Type Type 1 (Stepped Hub)
Max. RPM 9500
Rated Torque - Yellow Element (Nm) 190
Rated Torque - Red Element (Nm) 325
Dimension D¹ (mm) 66
Dimension S (mm) 1
Dimension L¹ (mm) 66
Dimension L² (mm) 45
