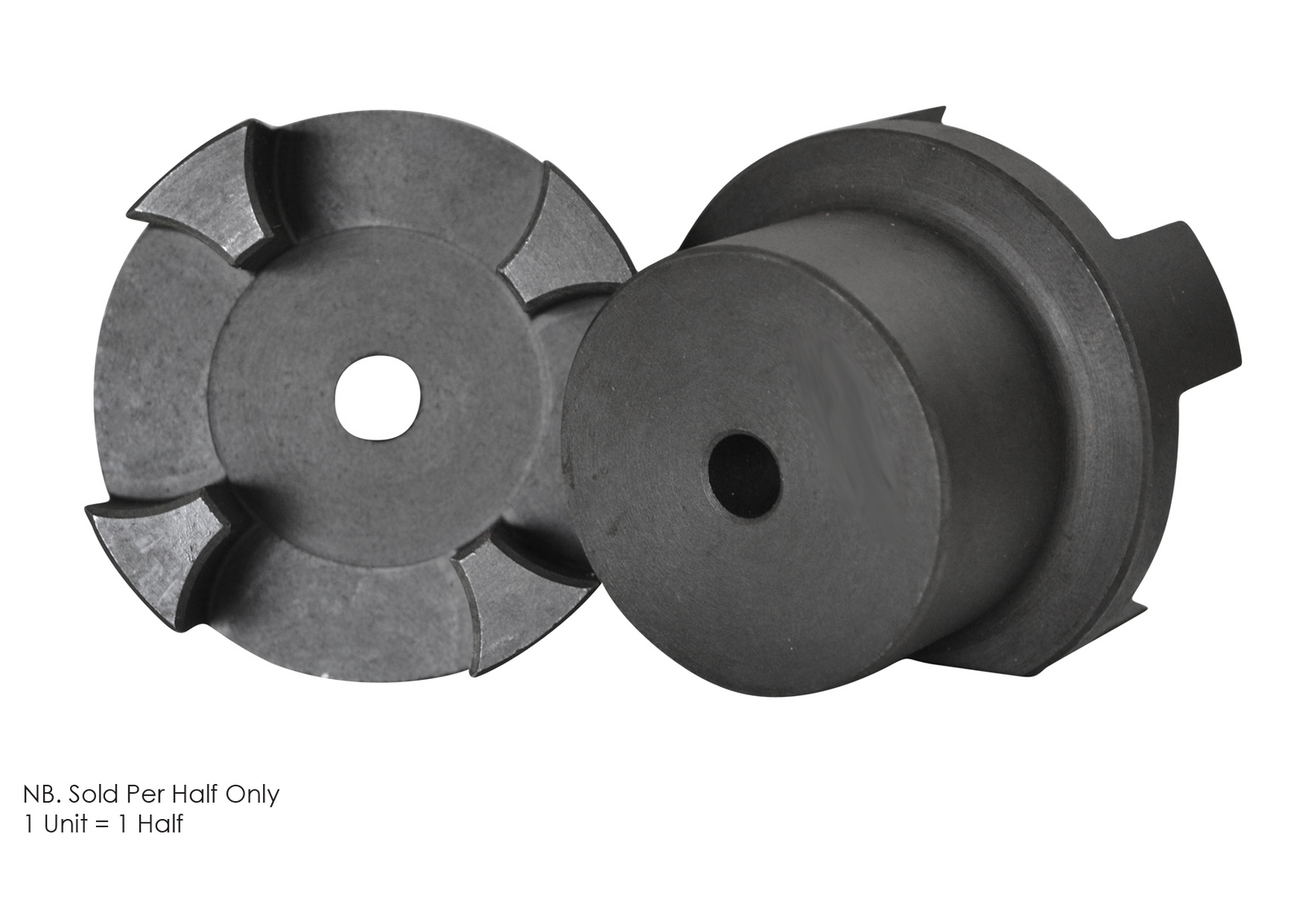

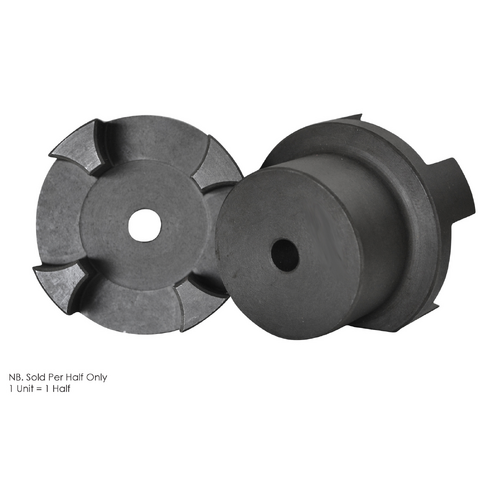

Curved Jaw Coupling Half GE55-1 Stepped Hub Pilot Bore Centre

$185.79



SKU GE55-1
Shipping Weight 4.3200kg
Bore PILOT BORE
(D) Outside Ø (mm) 120
Min. Bore (mm) 20
Max. Bore (mm) 55
Dimension L (mm) 158
Hub Type Type 1 (Stepped Hub)
Max. RPM 6300
Rated Torque - Yellow Element (Nm) 410
Rated Torque - Red Element (Nm) 685
Dimension D¹ (mm) 98
Dimension S (mm) 2
Dimension L¹ (mm) 91
Dimension L² (mm) 65
