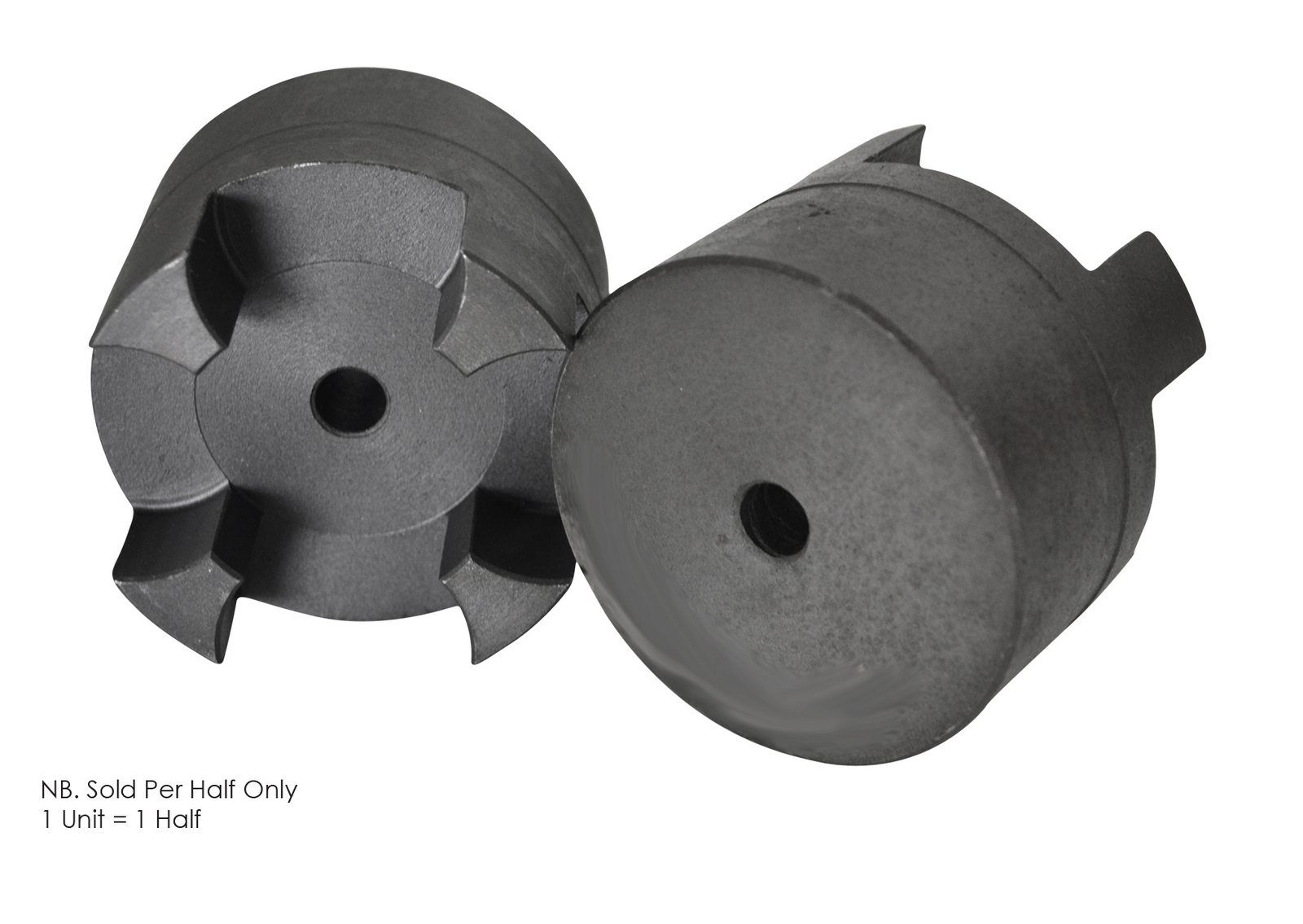

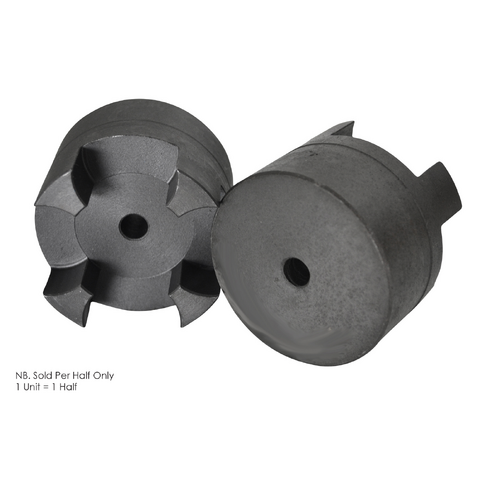

Curved Jaw Coupling Half GE90-1a Full Hub Pilot Bore Centre

$927.31



SKU GE90-1a
Shipping Weight 17.8900kg
Bore PILOT BORE
(D) Outside Ø (mm) 200
Min. Bore (mm) 40
Max. Bore (mm) 90
Dimension L (mm) 241
Hub Type Type 1a (Full Hub)
Max. RPM 3750
Rated Torque - Yellow Element (Nm) 2400
Rated Torque - Red Element (Nm) 3600
Dimension D¹ (mm) 180
Dimension S (mm) 1.5
Dimension L¹ (mm) 139.5
Dimension L² (mm) 100
