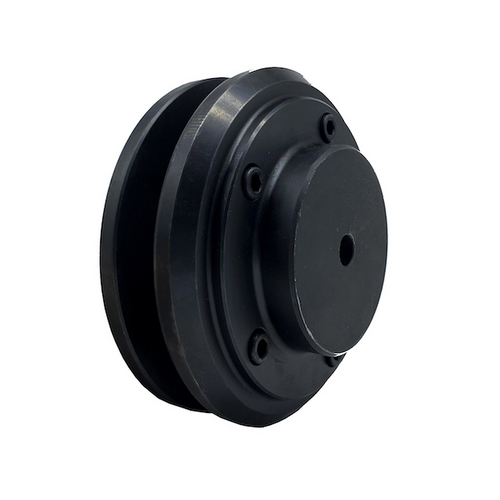

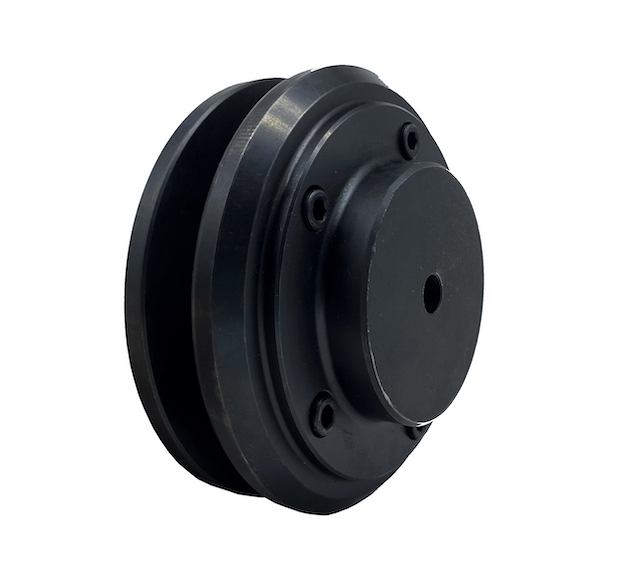

Flexible Tyre Coupling Half F90 B Flange Pilot Bore Centre

$290.63



SKU F90B
Shipping Weight 7.0000kg
Bore PILOT BORE
Min. Bore (mm) 16
Max. Bore (mm) 65
Dimension D (mm) 108
Dimension E (mm) 49
Dimension L (mm) 63.5
Dimension M (mm) 13.5
Hub Type B - Pilot Bore
Max. RPM 3000
Nominal Torque (Nm) 500
Dimension F (mm) 60
(A) Outside Ø Tyre (mm) 235
(C) Outside Ø Hub (mm) 188
