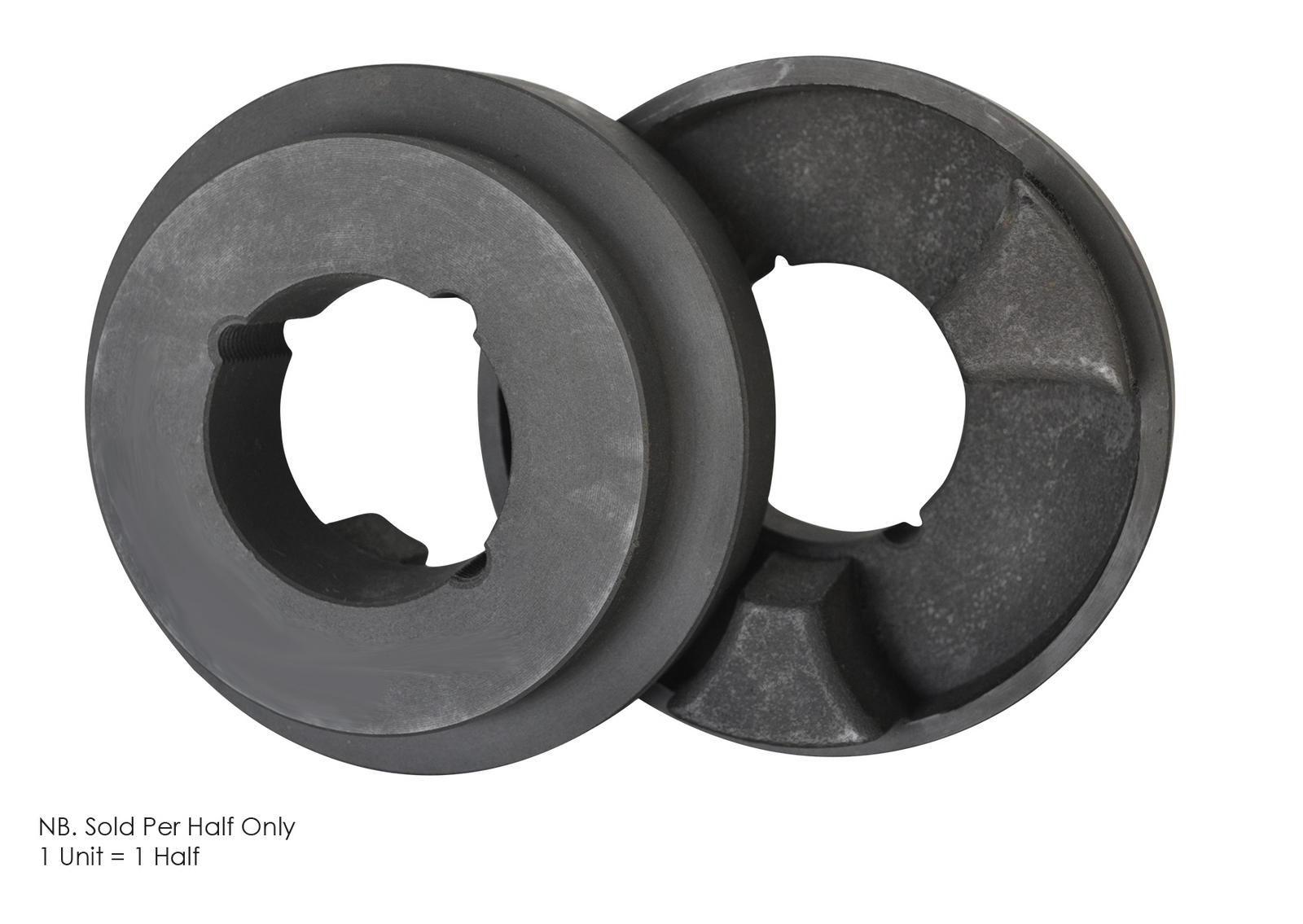

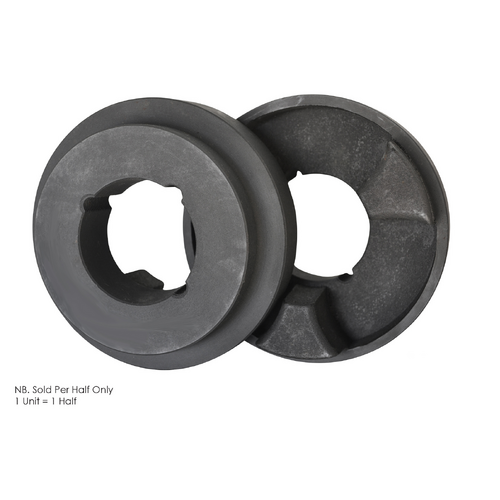

HRC Coupling Half HRC130H Hub Side Taper Lock Centre

$62.57

Low Stock


SKU HRC130H
Shipping Weight 5.4600kg
Bore Taper Lock
Compatible Bush 1610
Max. Bore (mm) 42 (1-5/8")
Dimension C (mm) 18
Dimension D (mm) 26.5
Hub Type H - Bush Installed on Hub Side
Nominal Torque (Nm) 315
(A) Outside Ø Hub (mm) 130
(B) Outside Ø Boss (mm) 105
Dimension F (mm) 53
Dimension J (mm) 38
(L) Assembled Length (mm) 89
