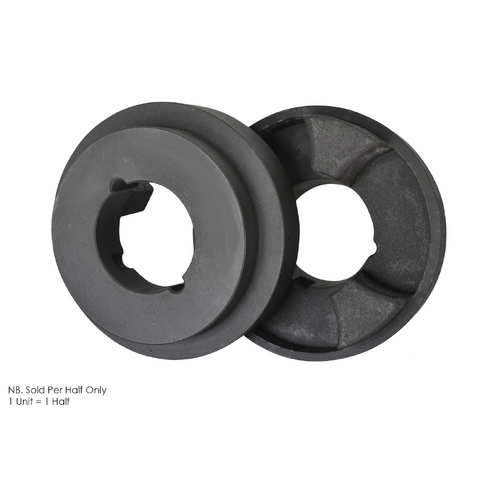

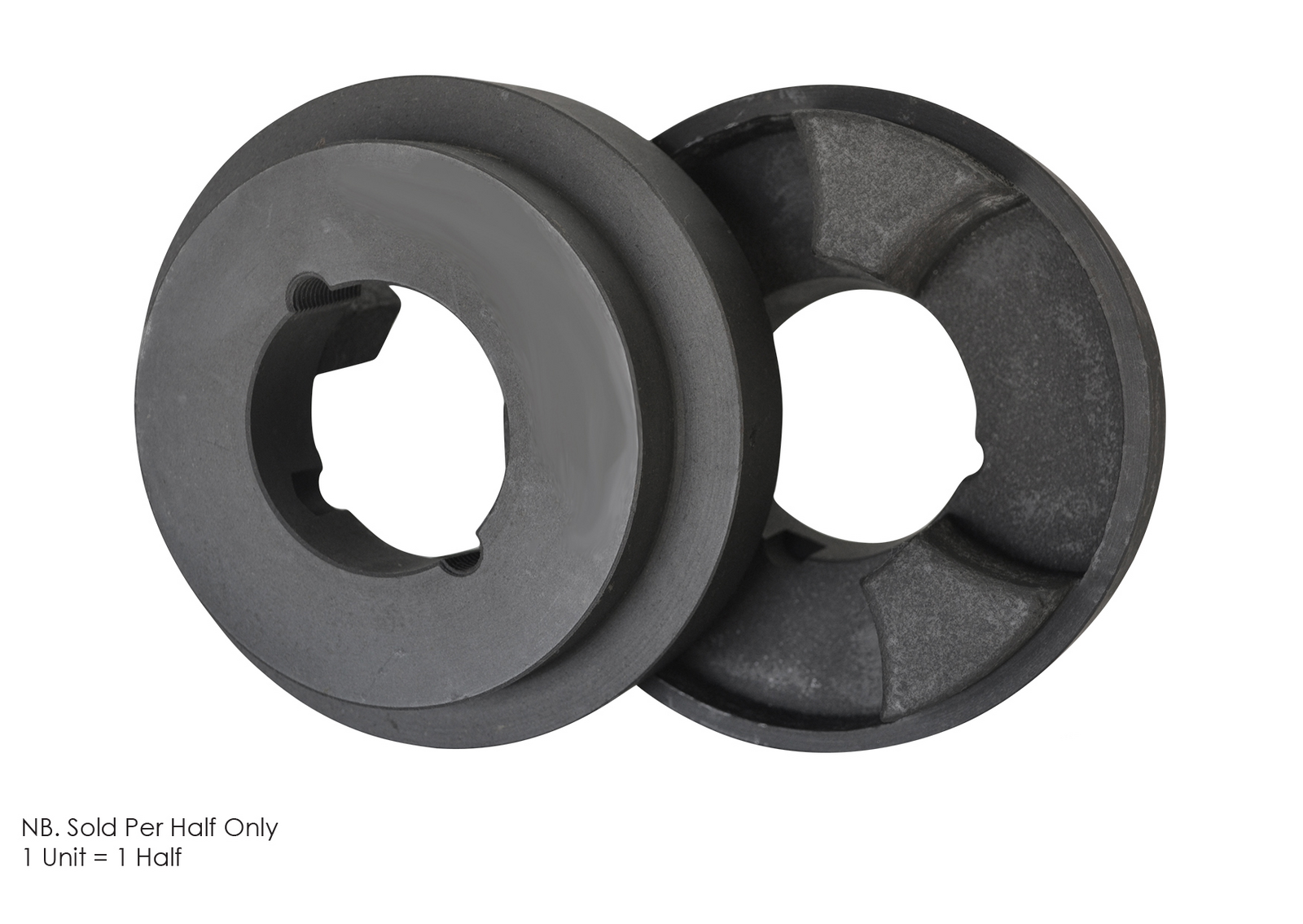

HRC Coupling Half HRC90F Flange Side Taper Lock Centre

$29.70



Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*
SKU HRC90F
Shipping Weight 1.1700kg
Dimension F (mm) 30.5
Nominal Torque (Nm) 80
Dimension C (mm) 19.5
Bore Taper Lock
(L) Assembled Length (mm) 69.5
(B) Outside Ø Boss (mm) 70
Hub Type F - Bush Installed on Flange Side
Max. Bore (mm) 28 (1-1/8")
Dimension J (mm) 29
(A) Outside Ø Hub (mm) 85
Dimension D (mm) 23.25
Compatible Bush 1108
