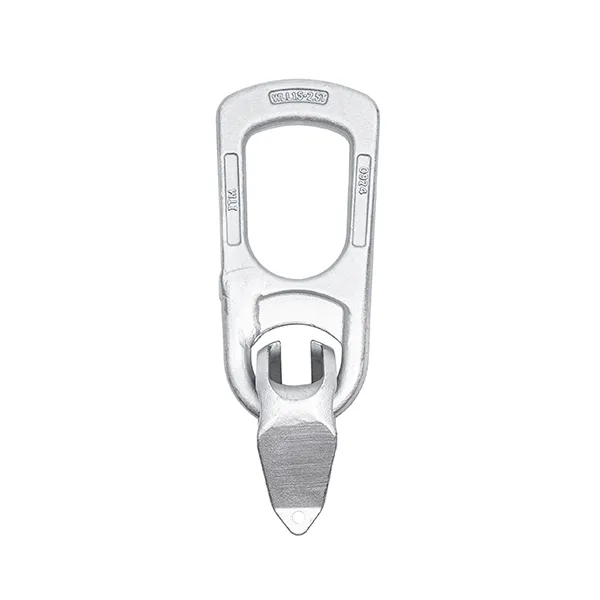

ITM Concrete Lifting Clutch, Panel Lifter, 1.3T

$52.00



  • Specifically designed for lifting precast concrete elements with an embedded pin
  • Easily engages under load, ensuring proper connection
  • Simple clutch release when lifting completed
  • Available in working load limits ranging from 1.3t to 20t
  • Tested and certified to AS 3850.1
  • W.L.L. (t): 1.3
  • B.L. (t): 5.2
  • Dimension A (mm): 33
  • Dimension B (mm): 42
  • Dimension C (mm): 80.4
  • Dimension D (mm): 70.5
  • Dimension E (mm): 45
  • Dimension F (mm): 73
  • Dimension H (mm): 160
  • Dimension M (mm): 11
  • Dimension L (mm): 186
  • Dimension G (mm): 20.5
  • Dimension K (mm): 12.5
  • Weight (kg): 0.89
SKU TM9814-00013
Barcode # 9328042047595
Brand ITM
Shipping Weight 1.0000kg
