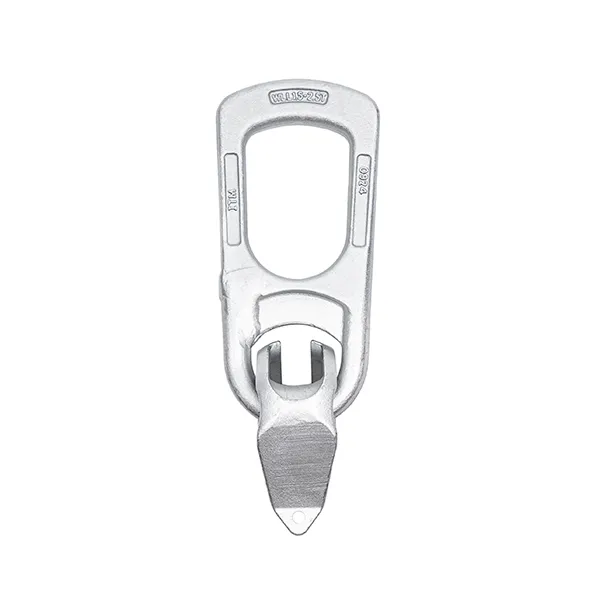

ITM Concrete Lifting Clutch, Panel Lifter, 5T

$160.00



  • Specifically designed for lifting precast concrete elements with an embedded pin
  • Easily engages under load, ensuring proper connection
  • Simple clutch release when lifting completed
  • Available in working load limits ranging from 1.3t to 20t
  • Tested and certified to AS 3850.1
  • W.L.L. (t): 5
  • B.L. (t): 20
  • Dimension A (mm): 55
  • Dimension B (mm): 70
  • Dimension C (mm): 133
  • Dimension D (mm): 88
  • Dimension E (mm): 69
  • Dimension F (mm): 110
  • Dimension H (mm): 242
  • Dimension M (mm): 22
  • Dimension L (mm): 282
  • Dimension G (mm): 35
  • Dimension K (mm): 18
  • Weight (kg): 3.24
SKU TM9814-00050
Barcode # 9328042047618
Brand ITM
Shipping Weight 3.4000kg
