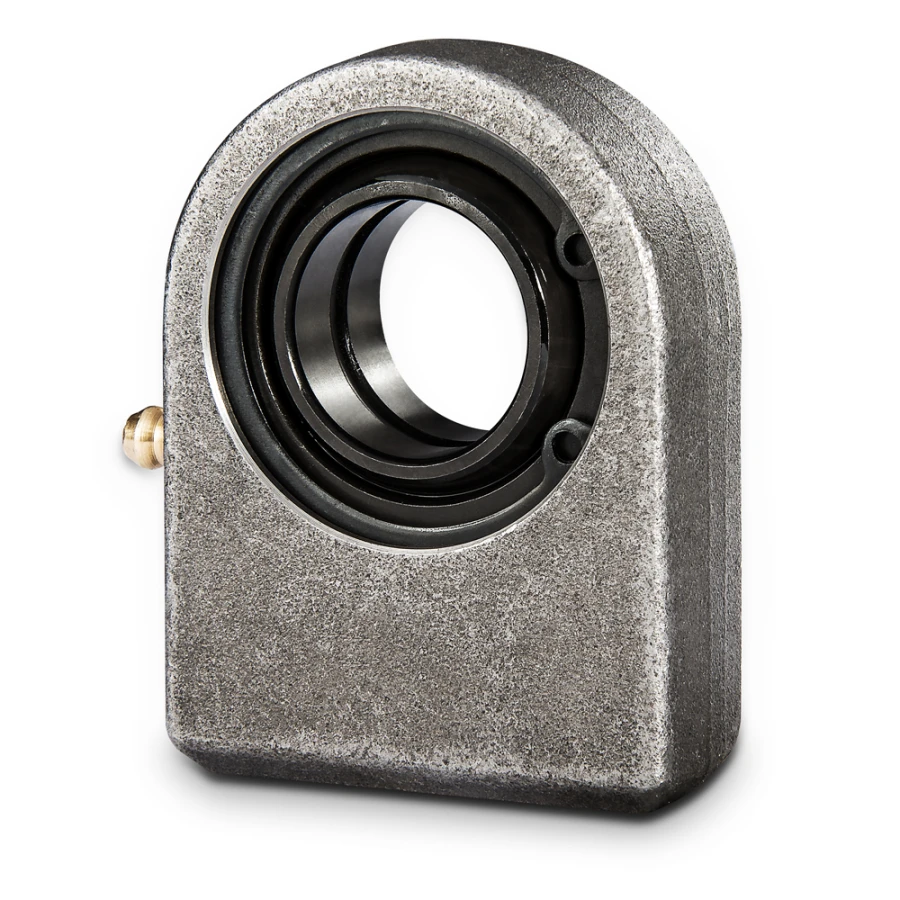

SF100ES LS Hydraulic Weld-on Rod End (100mm)

$2,215.82



Large and/or Heavy Item

SKU SF100ES-LS
Brand LS
Shipping Weight 33.1000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.011250000m3
Grade Economy
(d) Inside Ø (mm) 100
Seal Open
Ring Material Rolling Bearing Steel
Type Of Lubrication Oiled
Max. Operating Temperature (deg. C) +200°C
Min. Operating Temperature (deg. C) -60°C
(B) Width Of Inner Ring (mm) 70
Contact Surface Steel/Steel
(l) Length (mm) 295
(d²) Outside Ø (mm) 250
(c¹) Width (mm) 70
Mounting Welded - Rectangular
Norm DIN ISO 12240-4
