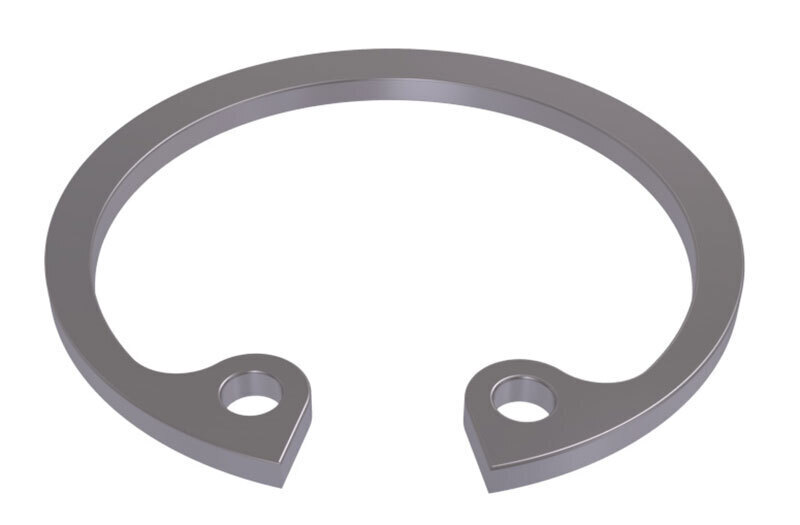

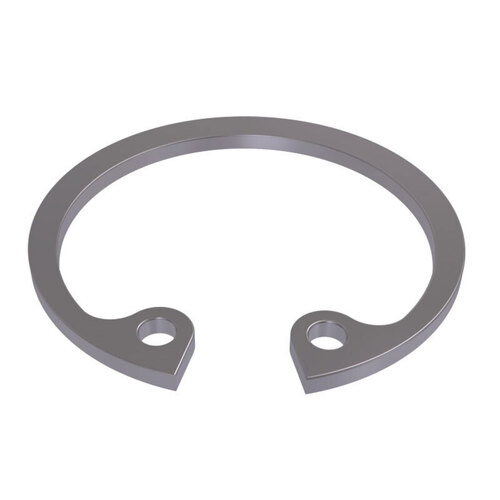

1300-48 Internal Circlip for 48mm Bore to DIN 472 Spring Steel

$2.73Per: EACH



48x1.75 DIN 472 Retaining Ring for Bore / Internal Circlip Spring Steel
SKU 1300-48
Material SPRING STEEL
Max. Operating Temperature (deg. C) +150°C
Min. Operating Temperature (deg. C) -30°C
Norm. DIN 472
(B) Bore Ø (mm) 48
(G) Groove Ø (mm) 50.5
(W) Groove Width (mm) 1.85
(t) Thickness (mm) 1.75
(D) Outside Ø Of Circlip (mm) 51.5
