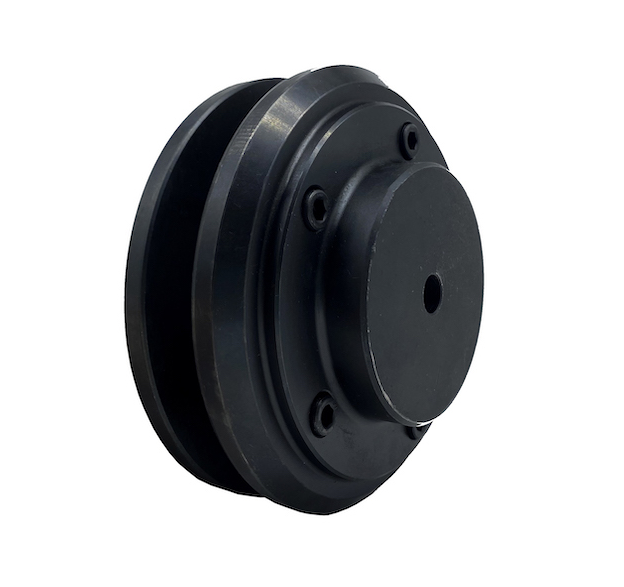

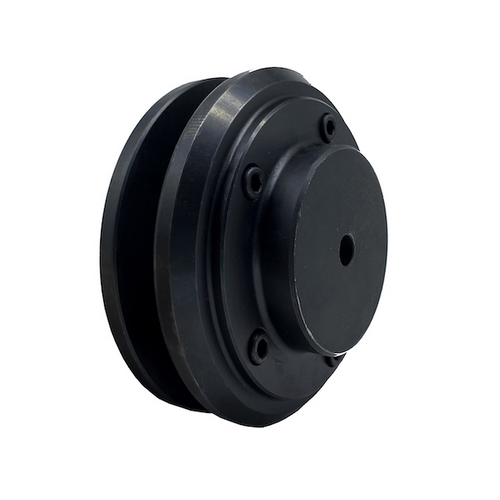

Flexible Tyre Coupling Half F100 B Flange Pilot Bore Centre

$374.33



SKU F100B
Shipping Weight 9.9000kg
Bore PILOT BORE
Min. Bore (mm) 16
Max. Bore (mm) 75
Dimension D (mm) 120
Dimension E (mm) 56
Dimension L (mm) 70.5
Dimension M (mm) 13.5
Hub Type B - Pilot Bore
Max. RPM 2600
Nominal Torque (Nm) 675
Dimension F (mm) 62
(A) Outside Ø Tyre (mm) 254
(C) Outside Ø Hub (mm) 216
