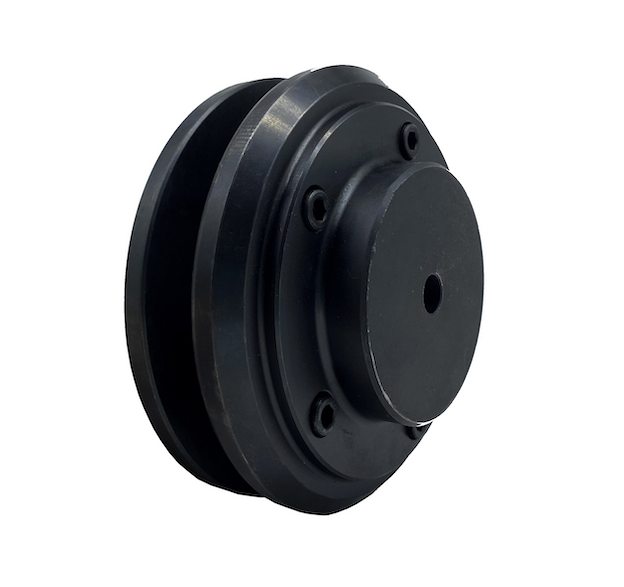

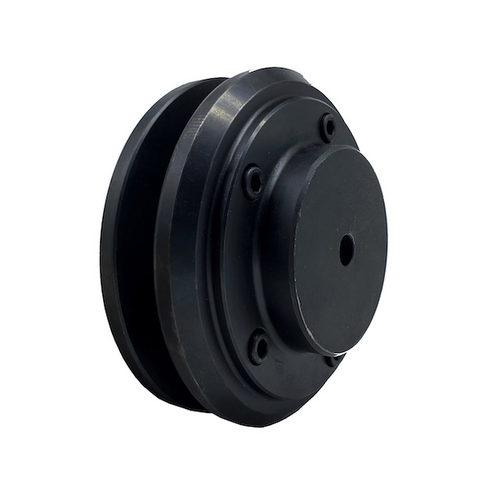

Flexible Tyre Coupling Half F180 B Flange Pilot Bore Centre

$1,898.49



SKU F180B
Shipping Weight 42.2000kg
Bore PILOT BORE
Min. Bore (mm) 55
Max. Bore (mm) 125
Dimension D (mm) 205
Dimension E (mm) 114
Dimension L (mm) 137
Dimension M (mm) 23
Hub Type B - Pilot Bore
Max. RPM 1500
Nominal Torque (Nm) 6270
Dimension F (mm) 94
(A) Outside Ø Tyre (mm) 470
(C) Outside Ø Hub (mm) 398
