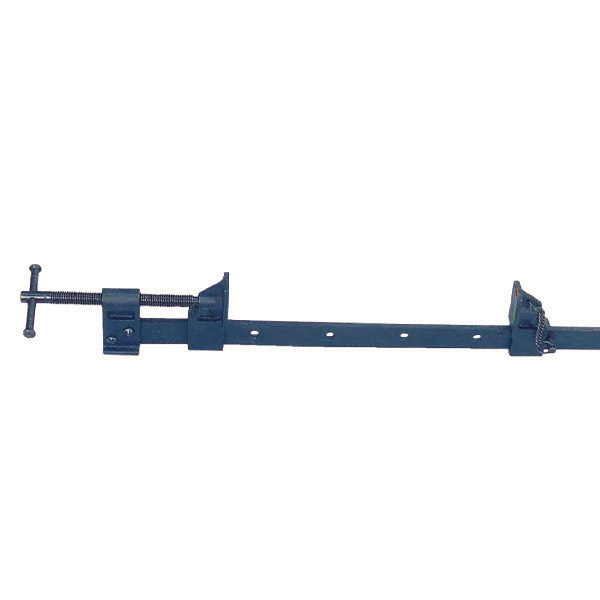

SBC/24 Groz Sash Clamp, Rectangular Section, 600mm Long 450mm Capacity

$57.00Per: EACH

Low Stock


Bar cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support.
The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action.
Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
The screw has rolled Acme threads that impart extra strength and are wear resistant.
Code: SBC/24
Bar Length: 600mm
Clamp Capacity: 450mm
Throat Depth: 50mm (2")
Width of Clamp Face: 30mm (1-3/16”)
SKU GZ-39110
Barcode # 8901486391104
Brand Groz
Shipping Weight 2.1100kg
