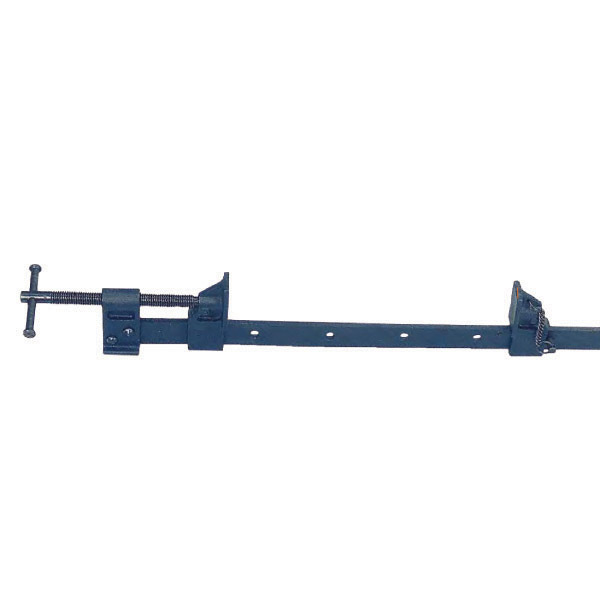

SBC/30 Groz Sash Clamp, Rectangular Section, 750mm Long 600mm Capacity

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)

$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas. Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*

Description
Reviews

Bar cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support.
The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action.
Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
The screw has rolled Acme threads that impart extra strength and are wear resistant.
Code: SBC/30
Bar Length: 750mm
Clamp Capacity: 600mm
Throat Depth: 50mm (2")
Width of Clamp Face: 30mm (1-3/16)
