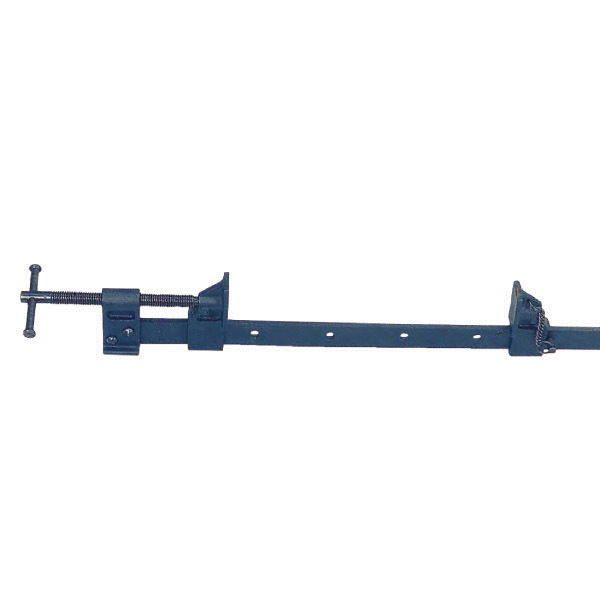

SBC/48 Groz Sash Clamp, Rectangular Section, 1200mm Long 1050mm Capacity

$80.08



Large and/or Heavy Item

Australia-Wide Flat Rate Shipping

$12 Standard Shipping – Australia Post eParcel service (Check Australia Post for transit times to your location)
$35 Express Shipping – StarTrack Courier service (Check StarTrack for transit times to your location)

Select your preferred option at the checkout

*Flat-Rate shipping excludes large/bulky items, consignment weights over 21kg, dangerous goods and remote areas.  Freight charge will be calculated and added to your invoice after your order is placed or please request a quote first*

Bar cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support.
The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action.
Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
The screw has rolled Acme threads that impart extra strength and are wear resistant.
Code: SBC/48
Bar Length: 1200mm
Clamp Capacity: 1050mm
Throat Depth: 50mm (2")
Width of Clamp Face: 30mm (1-3/16”)

SKU GZ-39114
Barcode # 8901486391140
Brand Groz
Shipping Weight 3.0200kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 1.250m
Shipping Cubic 0.020000000m3
