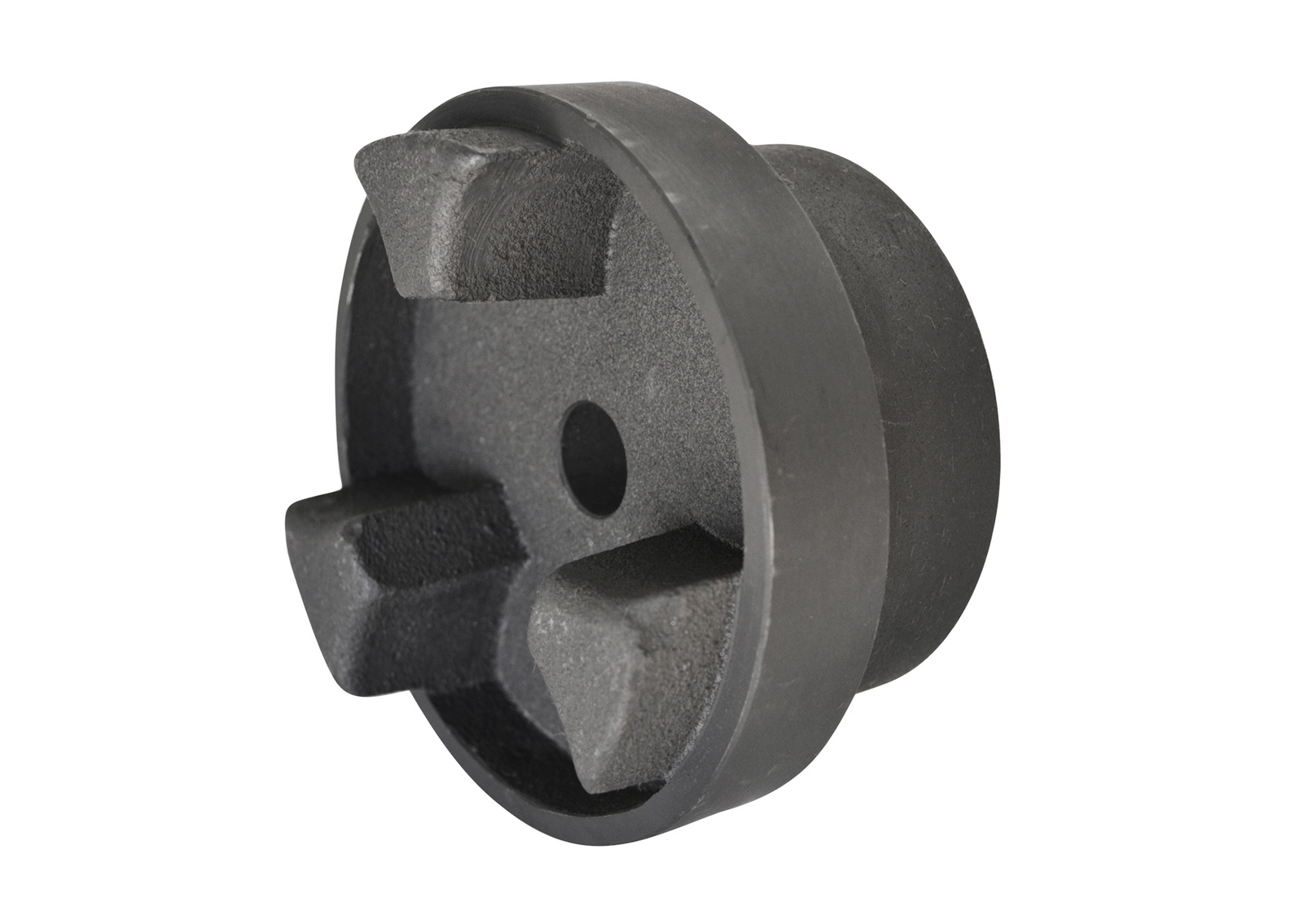

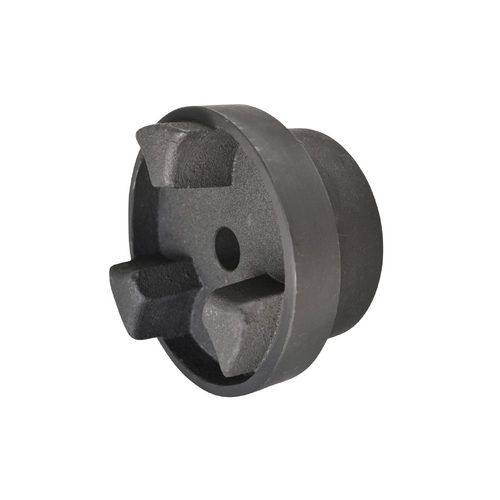

HRC Coupling Half HRC110 B Flange Pilot Bore Centre

$68.98



SKU HRC110B
Shipping Weight 5.0000kg
Bore PILOT BORE
Min. Bore (mm) 10
Max. Bore (mm) 55
Dimension C (mm) 18.5
Dimension D (mm) 26.75
Hub Type B - Pilot Bore
Nominal Torque (Nm) 160
(A) Outside Ø Hub (mm) 112
(B) Outside Ø Boss (mm) 100
Dimension F (mm) 45
Dimension J (mm) 38
(L) Assembled Length (mm) 119
