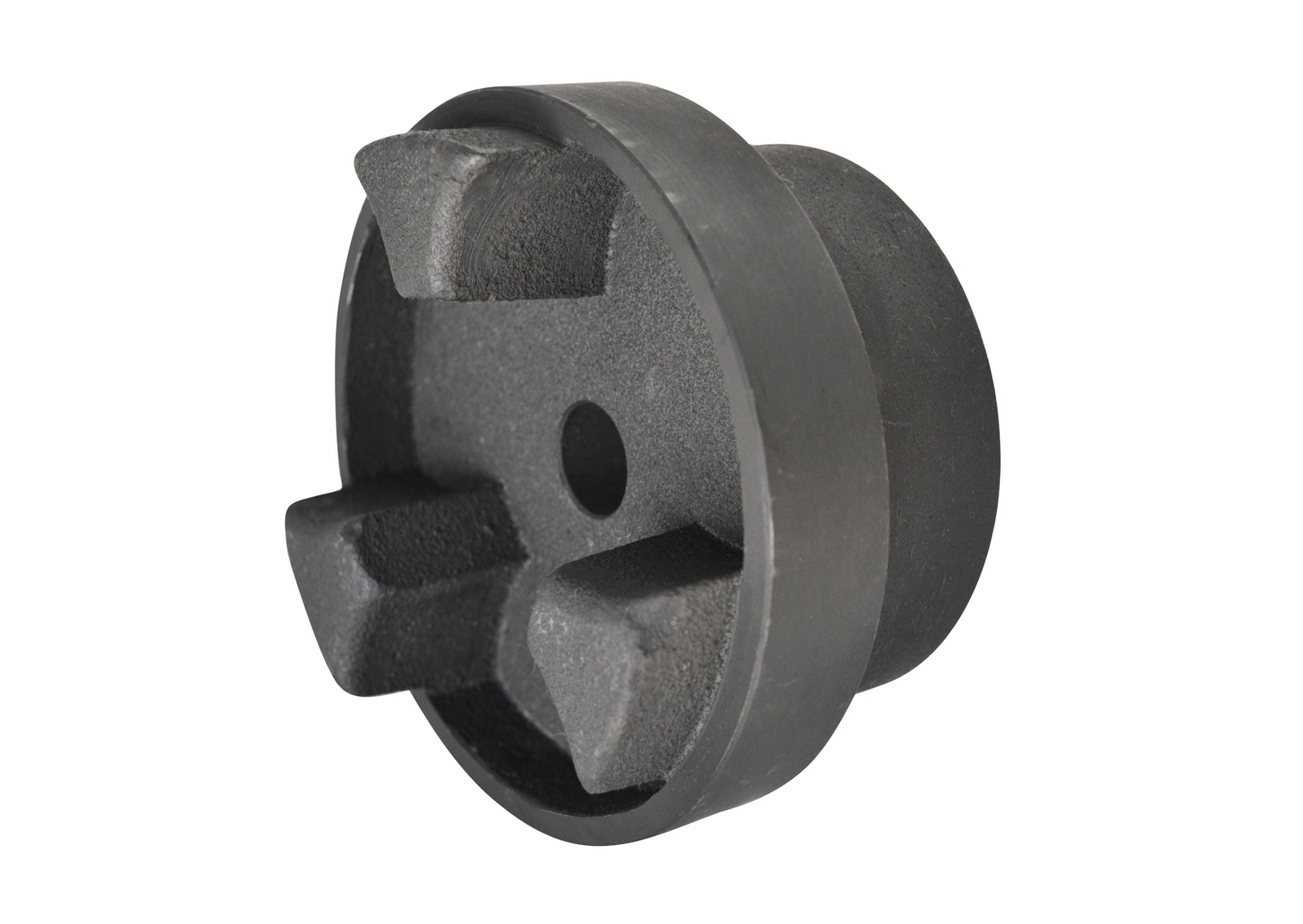

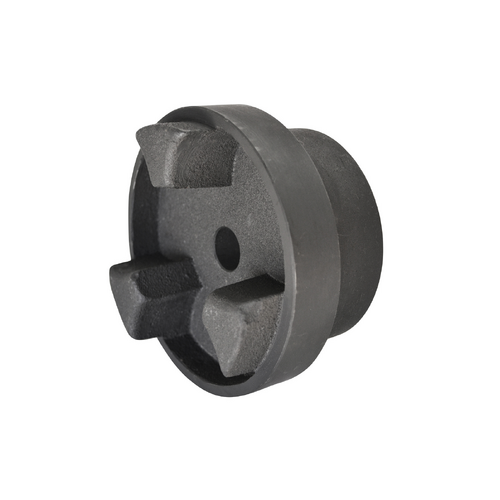

HRC Coupling Half HRC280 B Flange Pilot Bore Centre

$708.94



SKU HRC280B
Shipping Weight 55.3000kg
Bore PILOT BORE
Min. Bore (mm) 30
Max. Bore (mm) 115
Dimension C (mm) 74
Dimension D (mm) 90
Hub Type B - Pilot Bore
Nominal Torque (Nm) 3150
(A) Outside Ø Hub (mm) 275
(B) Outside Ø Boss (mm) 185
Dimension F (mm) 105.5
Dimension J (mm) 67
(L) Assembled Length (mm) 285.5
