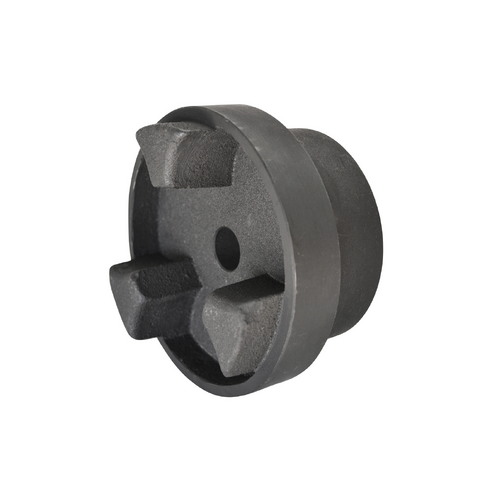

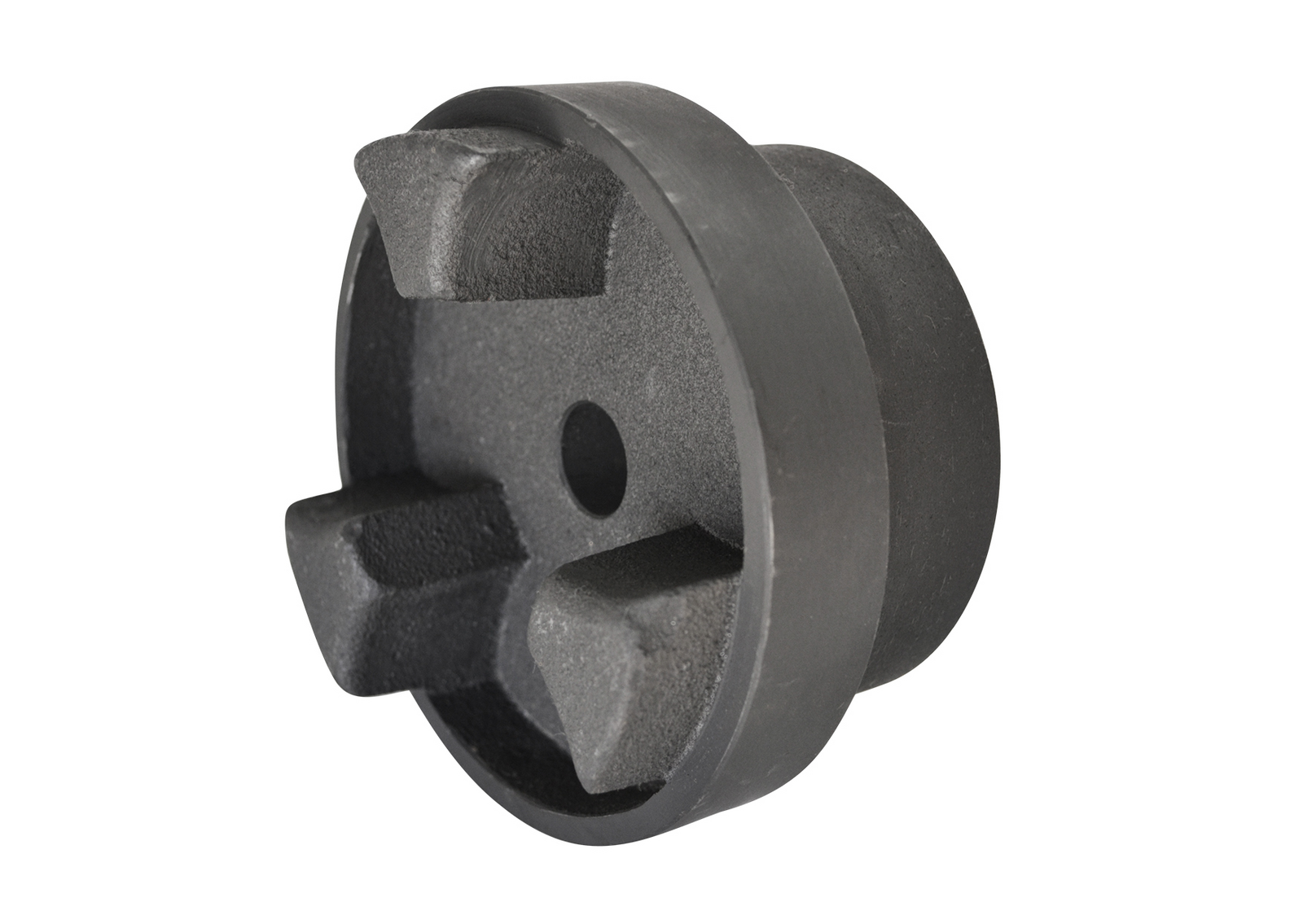

HRC Coupling Half HRC90 B Flange Pilot Bore Centre

$45.07



SKU HRC90B
Shipping Weight 1.1700kg
Bore PILOT BORE
Min. Bore (mm) 10
Max. Bore (mm) 42
Dimension C (mm) 19.5
Dimension D (mm) 23.25
Hub Type B - Pilot Bore
Nominal Torque (Nm) 80
(A) Outside Ø Hub (mm) 85
(B) Outside Ø Boss (mm) 70
Dimension F (mm) 30.5
Dimension J (mm) 29
(L) Assembled Length (mm) 82.5
