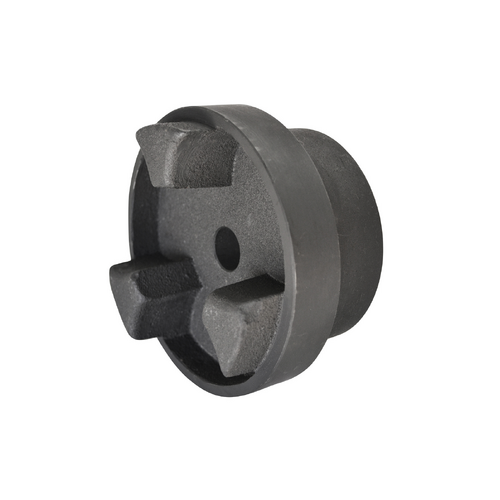

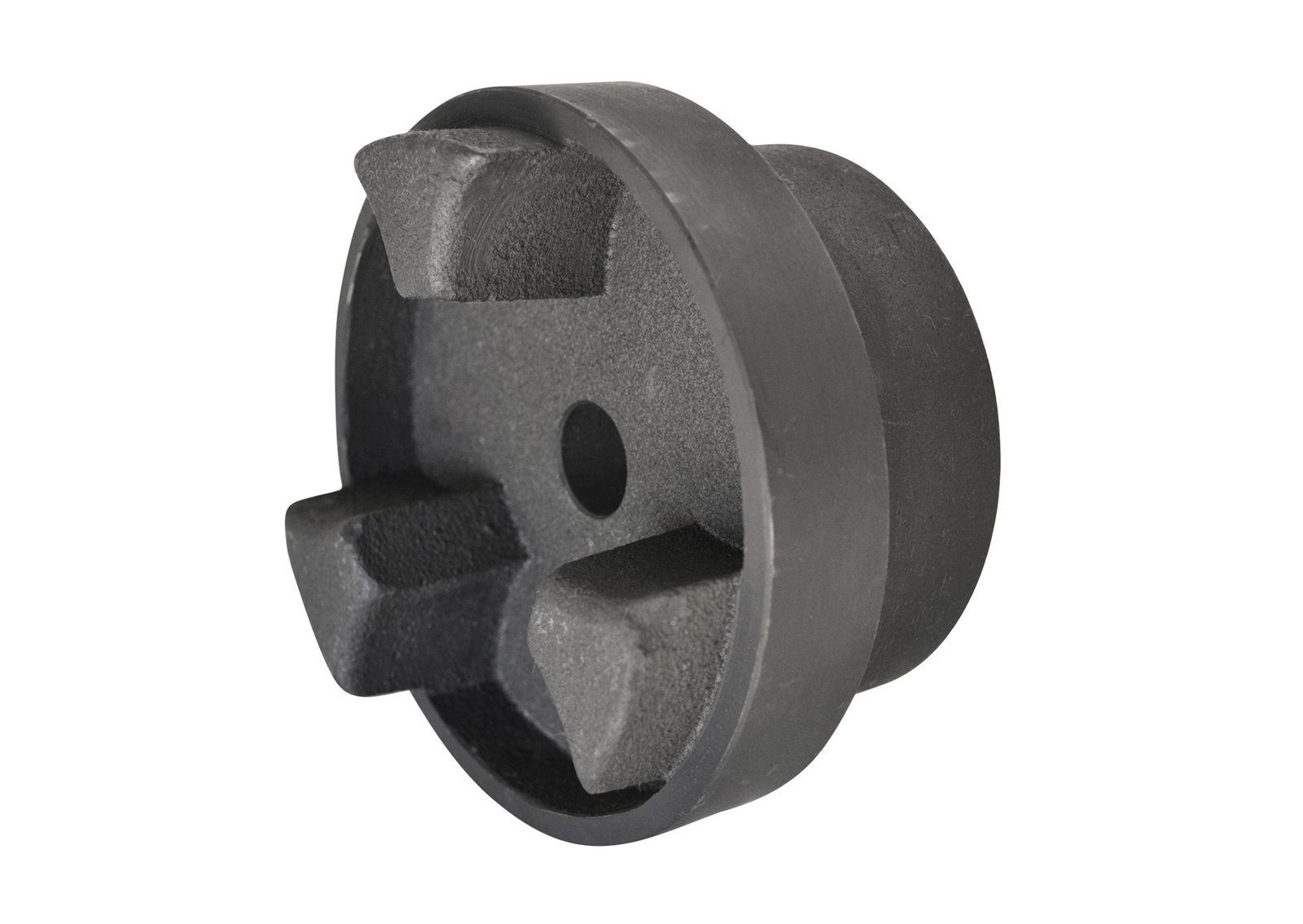

HRC Coupling Half HRC150 B Flange Pilot Bore Centre

$129.10



SKU HRC150B
Shipping Weight 7.1100kg
Bore PILOT BORE
Min. Bore (mm) 20
Max. Bore (mm) 70
Dimension C (mm) 23.5
Dimension D (mm) 33.5
Hub Type B - Pilot Bore
Nominal Torque (Nm) 600
(A) Outside Ø Hub (mm) 150
(B) Outside Ø Boss (mm) 115
Dimension F (mm) 60
Dimension J (mm) 42
(L) Assembled Length (mm) 152
