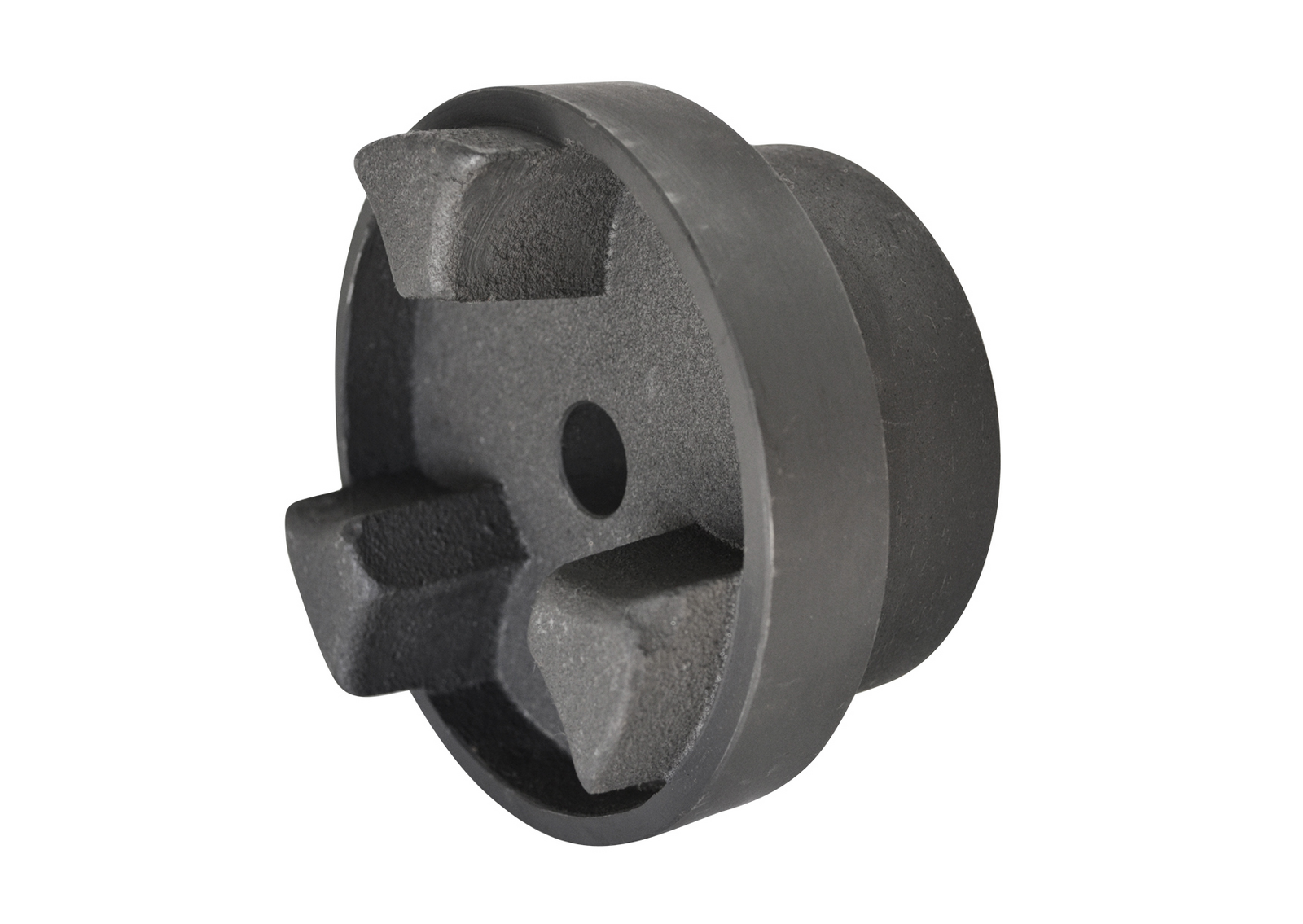

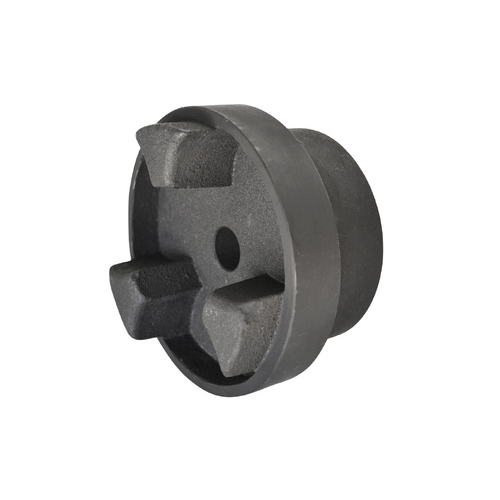

HRC Coupling Half HRC130 B Flange Pilot Bore Centre

$78.82



SKU HRC130B
Shipping Weight 5.4600kg
Bore PILOT BORE
Min. Bore (mm) 15
Max. Bore (mm) 60
Dimension C (mm) 18
Dimension D (mm) 26.5
Hub Type B - Pilot Bore
Nominal Torque (Nm) 315
(A) Outside Ø Hub (mm) 130
(B) Outside Ø Boss (mm) 105
Dimension F (mm) 53
Dimension J (mm) 38
(L) Assembled Length (mm) 131
